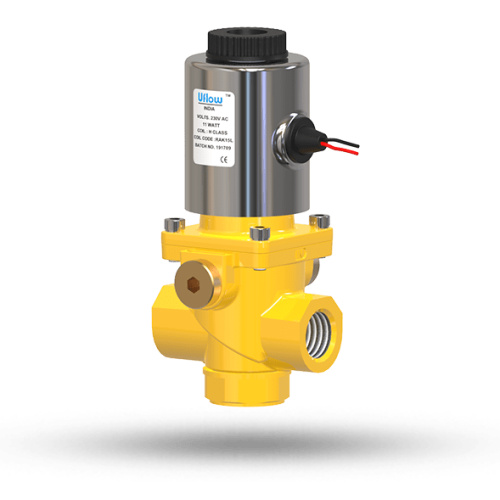

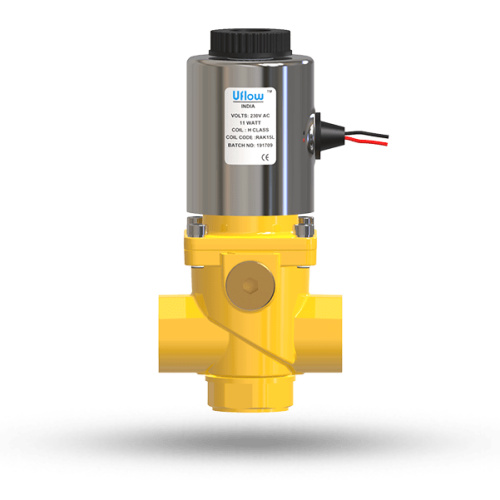

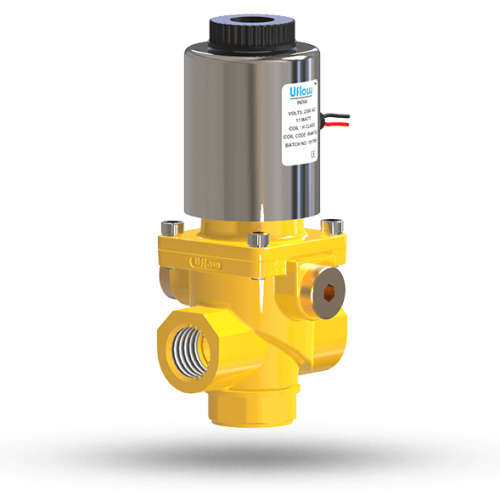

Uflow 1/2 Inch 2/2 way 500mbar Town Gas/Natural Gas/LPG Solenoid Valve with Metallic Round Coil

2,440.003,050.00 (-20%)

In stock

Features:

  • Size : 1/2″BSP
  • Coil Type : Metallic Round Coil with Lead Wire
  • Valve Type : 2/2 way Normally Closed Screwed End
  • Key factor : with Quick Release Initial Flow Adjustment, Opening Time Adjustment
  • Body Material : Aluminum Pressure Die Cast
  • Pressure Range : 0 to 500 mbar
  • Temperature (Media) : -10° C to 60° C
  • Seal : Nitrile (NBR)
  • Media : Air, Natural Gas, Town Gas
  • Application : Generally used in a boiler or industrial heating application related to Town Gas, Natural gas
  • Other Specification / Data : Check the tabs given below for details

W3Schools

SKU: DAN213-18MRLW-230VAC Categories: ,

2,440.003,050.00 (-20%)

Clear

Description

Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed Ends
Body Material Aluminum Pressure Die Cast
Diaphragm Nitrile (NBR)
Media Temp -10° C to 60° C
Circumstance Temp -30° C to 70° C
Media Air, Natural Gas, Town Gas, Air.
Main Features Flow adjustment, Opening time adjustment, Quick release initial flow adjustment
Operating Voltage
230AC 24DC
30W / 15W 30W / 14W
Power Consumption
Coil Features High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require..
Other Coil Types Round Metallic Coil with LED, Power Saver Coil
Other Specification Data Available on Request

NOTE: Use of filter in the inlet port is recommended.

  • Coils are conforming as per IEC-60335-1 with derivatives (LVD / EMC).
  • Gas Solenoid Valve complies as per EN-161 requirement.

Dimensions

    DAN213

Model No. Port Size A B C D E E1
DAN213
1/2"
72
147
118
70
50
60

Technical Data

Model No. Body Material Pipe (Inch) Orifice (mm) Min. Operating Pressure mbar Max. Operating Pressure mbar Seal & Diaphragm Material Flow Factor Kv m³/hr
DAN213 Aluminium 1/2″” 15 0 500 NBR 4
