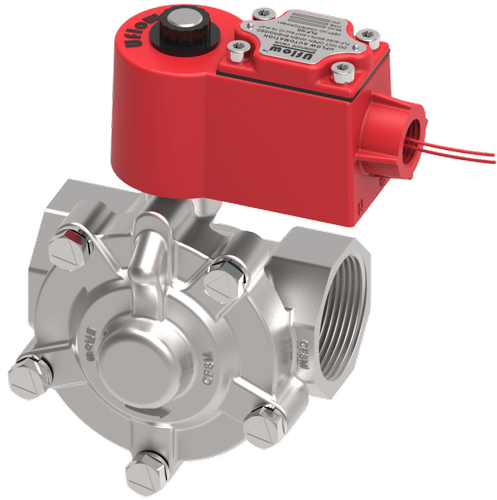

Uflow 1.1/2 Inch 2/2 Way High Pressure Diaphragm Solenoid Valve SS304 with IP67 Flame Proof Coil – Screwed Ends
₹7,550.00 – ₹7,915.00 (-20%)
Features:
- Size : 1.1/2″BSP
- Coil Type : IP-67 Flame Proof Coil
- Valve Type : High Pressure 2/2 way Normally Closed Screwed End
- Body Material : SS304 (ASTM A351 Grade CF8)
- Pressure Range : 1 to 20 kg/cm2 (bar)
- Temperature (Media) : -30° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Chemical, Gas
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||||||
|---|---|---|---|---|---|---|---|
| End Connection | Screwed | ||||||
| Body Material | SS ASTM A351 Grade CF8 | ||||||
| Diaphragm |
|
||||||
| Media Temp. | |||||||
| Media | Air, Water, Chemical, Gas | ||||||
| Main Features | Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment | ||||||
| Operating Voltage |
|
||||||
| Power Consumption | |||||||
| Coil Features | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.. | ||||||
| Other Coil Types | Metallic Round Coil with Wire, Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-68 Weather Proof Coil, Power Saver Coil | ||||||
| Optional Feature | 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces. | ||||||
| Other Specification Data | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
Dimensions
| Model No. | Port Size | Diagram No | A | B | C | D | E | E1 |
|---|---|---|---|---|---|---|---|---|
|
PCN6G
|
1.1/2"
|
14.1
|
108
|
172
|
116
|
88
|
48
|
57
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|---|---|---|
| PCN6G | CF8 (SS304) | 1.1/2″ | 36 | 1 | 20 | NBR | 17.10 |
* Note – Body Material : CF8M (SS316) on request, Seal : EPDM / VITON on request
