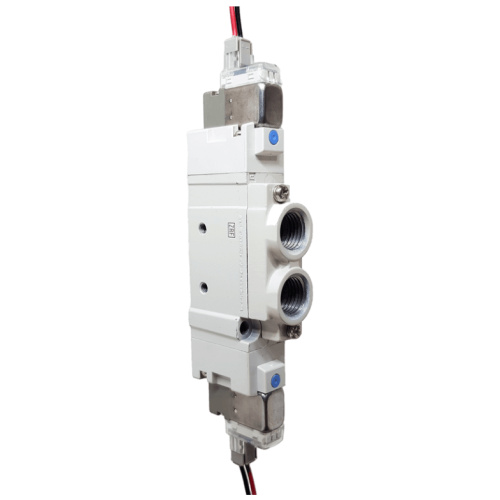

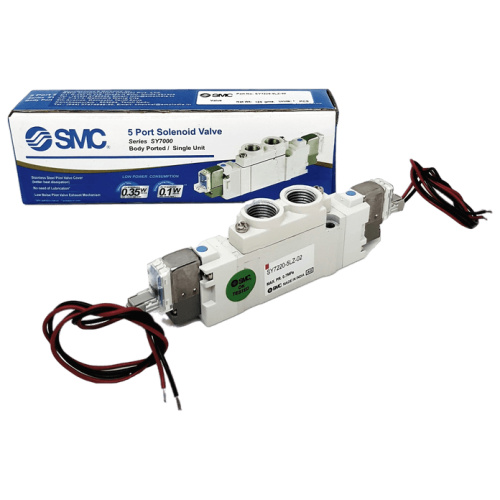

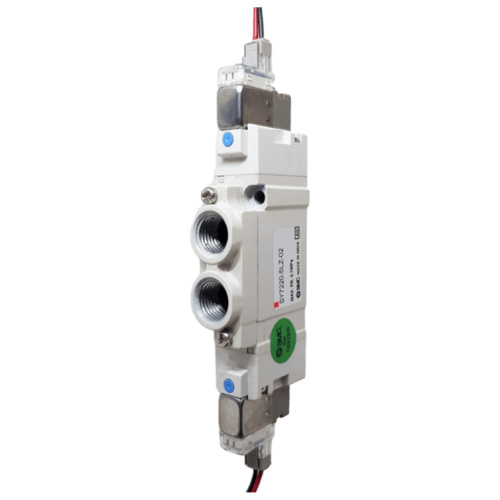

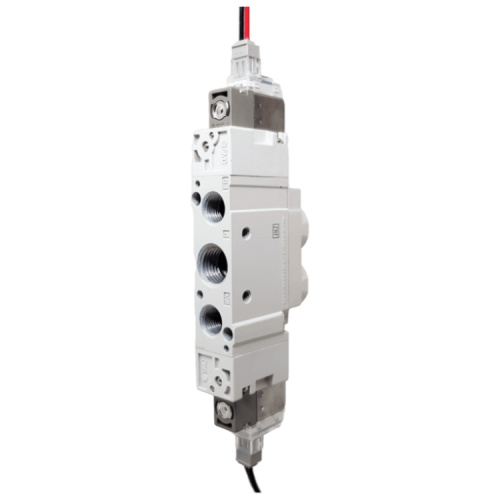

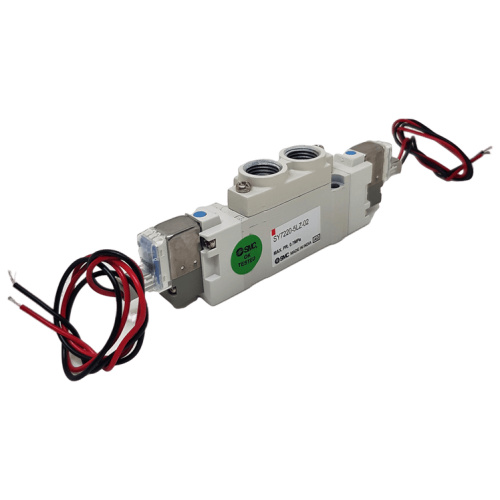

SMC SY7220-5LZ-02 Pneumatic Double Solenoid Valve 1/4″x5/2 Way 24V DC
₹3,660.00₹4,575.00 Price Excluding GST - ₹3,101.69 (-20%)
Features
- Item : 5/2 Way Double Solenoid Valve
- Body : Aluminum Die Cast
- Fluid : Air
- Port Size : 1/4 inch
- Voltage : 24V DC
- Electrical Entry : L Plug Connector
- Indicator Light & Supressor : Yes
Description
| Item | Double Solenoid Valve |
|---|---|
| Position | 5/2-Way |
| Port Size | 1/4″ |
| Operating Pressure | 0.1 – 0.7 MPa |
| Max. Operating Frequency | 5 Hz |
| Type of actuation | Double Solenoid |
| Material of Construction | Die Cast Aluminium |
| Manual Override | Non-Locking Push Type |
| Type of mounting | Can be Mounted On Manifold Or With through hole Or Bracket |
Technical Data
| Model | Port Size | Actuation Type | Power Consumption | Response Time @ 0.5MPa | Seal |
|---|---|---|---|---|---|
| SY7220-4LZ-02 | 1/4″ | Electric | 0.4W | 30 or less ms | H-NBR |

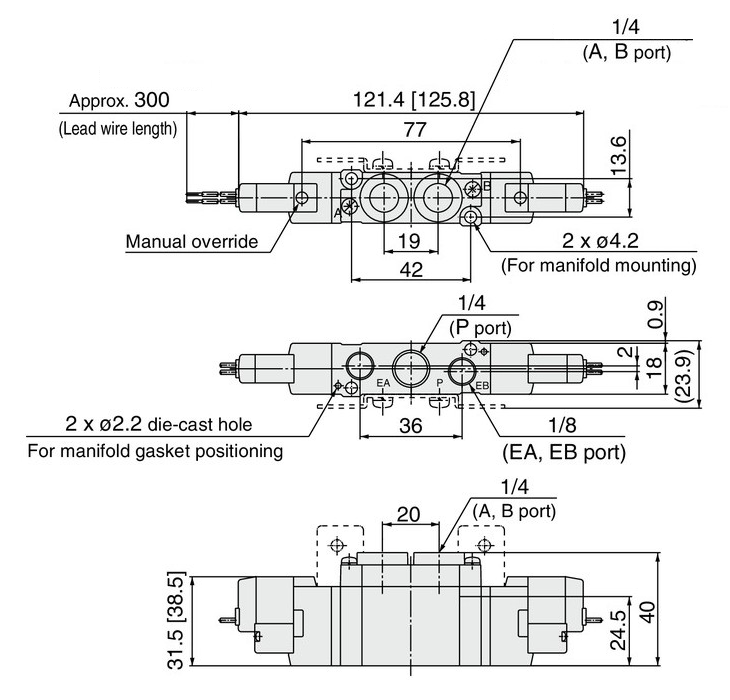

Dimensions
