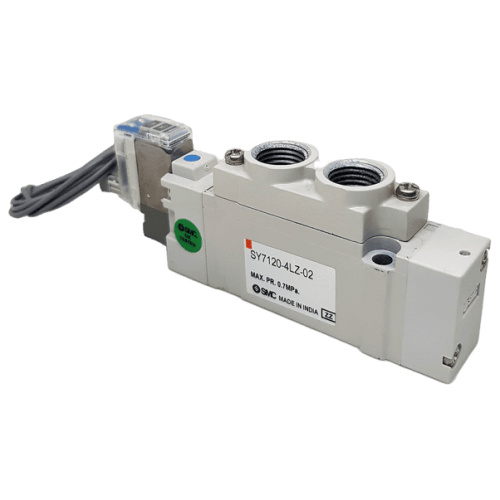

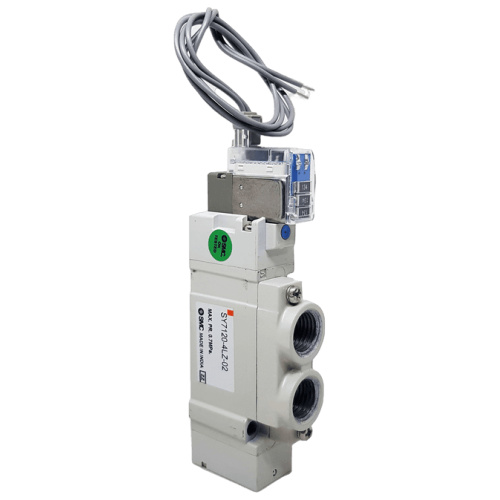

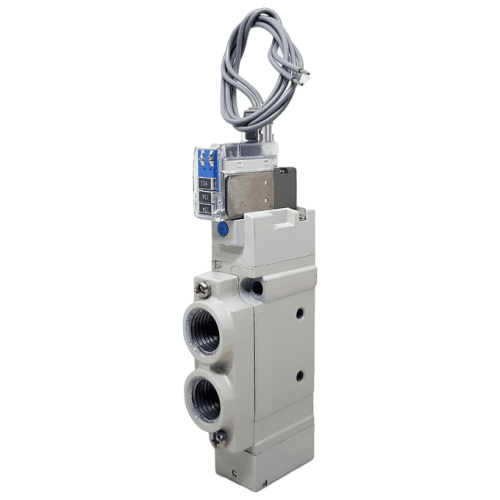

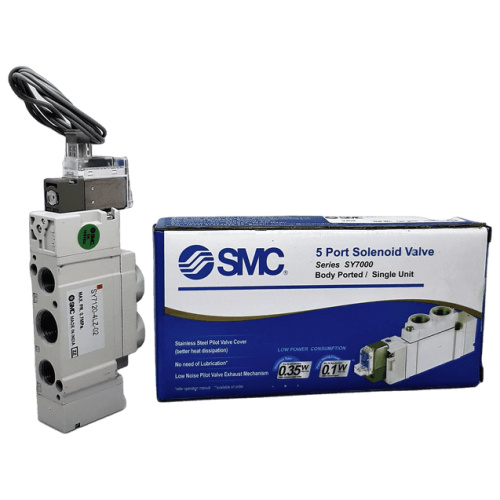

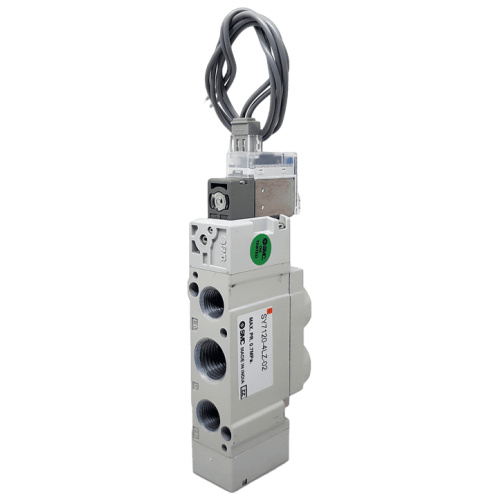

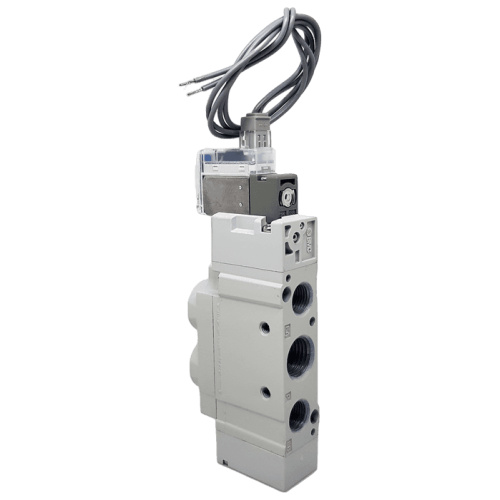

SMC SY7120-4LZ-02 Pneumatic Single Solenoid Valve 1/4″x5/2 Way 220V AC
₹3,440.00₹4,300.00 Price Excluding GST - ₹2,915.25 (-20%)
Features
- Item : 5/2 Way Single Solenoid Valve
- Body : Aluminum Die Cast
- Fluid : Air
- Port Size : 1/4 inch
- Voltage : 220V AC
- Electrical Entry : L Plug Connector
- Indicator Light & Supressor : Yes
Description
| Item | Single Solenoid Valve |
|---|---|
| Position | 5/2-Way |
| Port Size | 1/4″ |
| Operating Pressure | 0.15 – 0.7 MPa |
| Max. Operating Frequency | 5 Hz |
| Type of actuation | Single Solenoid |
| Material of Construction | Die Cast Aluminium |
| Manual Override | Push Type |
| Type of mounting | Can be Mounted On Manifold Or With through hole Or Bracket |
Technical Data
| Model | Port Size | Actuation Type | Indicator Light | Power Consumption | Response Time @ 0.5MPa | Seal |
|---|---|---|---|---|---|---|
| SY7120-4LZ-02 | 1/4″ | Electric | LED | 0.4W | 38 or less ms | H-NBR |

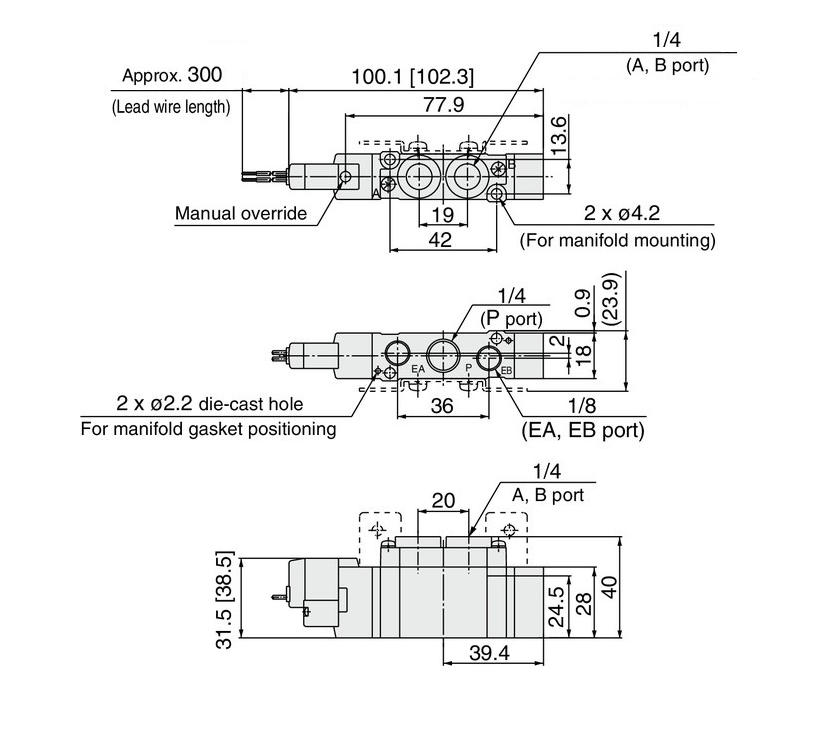

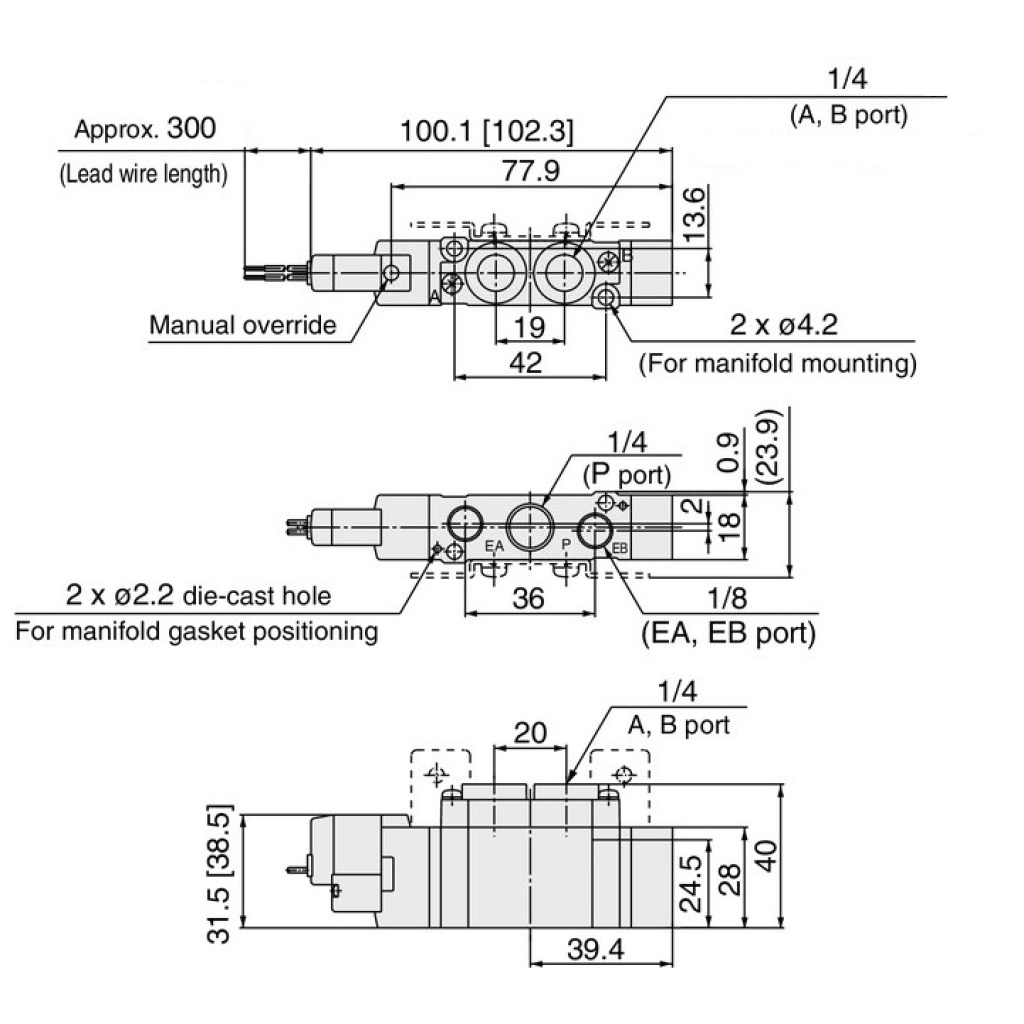

Dimensions
