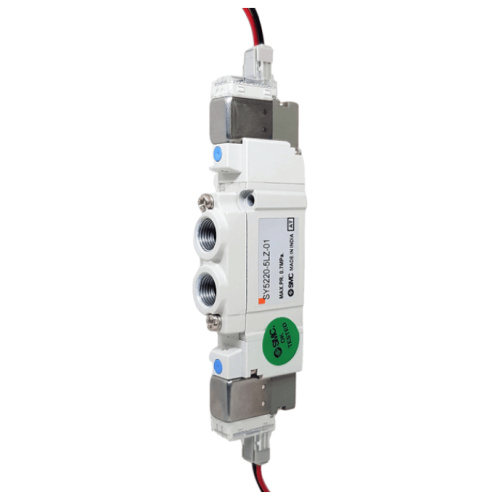

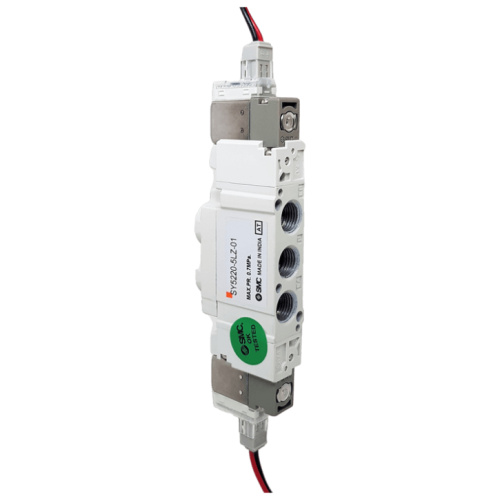

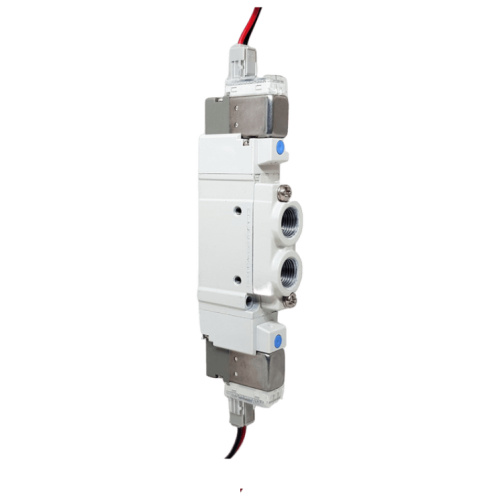

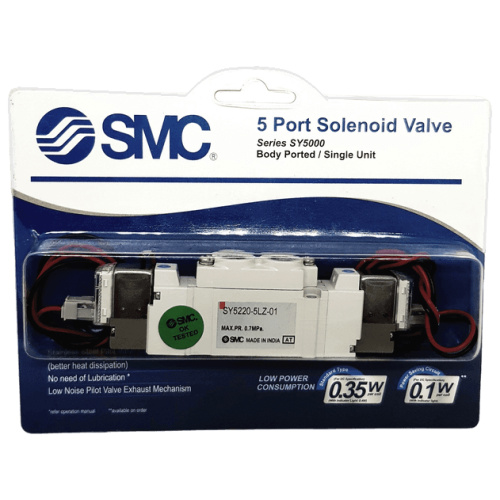

SMC SY5220-5LZ-01 Pneumatic Double Solenoid Valve 1/8″x5/2 Way 24V DC

3,590.004,488.00 Price Excluding GST - 3,042.37 (-20%)

In stock

Features

  • Item : 5/2 Way Double Solenoid Valve
  • Body : Aluminum Die Cast
  • Fluid : Air
  • Port Size : 1/8 inch
  • Voltage : 24V DC
  • Electrical Entry : L Plug Connector
  • Indicator Light & Supressor : Yes

SKU: SMCCIPLSY52205LZ01-185224V Categories: , ,

3,590.004,488.00 Price Excluding GST - 3,042.37 (-20%)

Description

Item Double Solenoid Valve
Position 5/2-Way
Port Size 1/8″
Operating Pressure 0.1 – 0.7 MPa
Max. Operating Frequency 5 Hz
Type of actuation Double Solenoid
Material of Construction Die Cast Aluminium
Manual Override Non-Locking Push Type
Type of mounting Can be Mounted
On Manifold
Or With through hole
Or Bracket

Technical Data

Model Port Size Actuation Type Power Consumption Response Time @ 0.5MPa Seal
SY5220-5LZ-01 1/8″ Electric 0.4W 22 or less ms H-NBR

Dimensions
