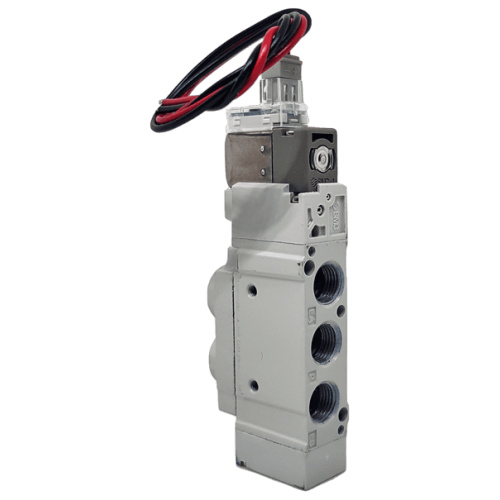

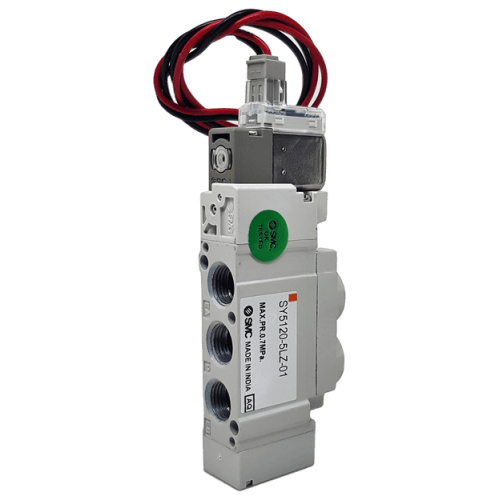

SMC SY5120-5LZ-01 Pneumatic Single Solenoid Valve 1/8″x5/2 Way 24V DC

2,390.002,988.00 Price Excluding GST - 2,025.42 (-20%)

In stock

Features

  • Item : 5/2 Way Single Solenoid Valve
  • Body : Aluminum Die Cast
  • Fluid : Air
  • Port Size : 1/8 inch
  • Voltage : 24V DC
  • Electrical Entry : L Plug Connector
  • Indicator Light & Supressor : Yes



SKU: SMCCIPLSY51205LZ01-185224V Categories: , ,

2,390.002,988.00 Price Excluding GST - 2,025.42 (-20%)

Description

Item Single Solenoid Valve
Position 5/2-Way
Port Size 1/8″
Operating Pressure 0.15 – 0.7 MPa
Max. Operating Frequency 5 Hz
Type of actuation Single Solenoid
Material of Construction Die Cast Aluminium
Manual Override Push Type
Type of mounting Can be Mounted
On Manifold
Or With through hole
Or Bracket

Technical Data

Model Port Size Actuation Type Indicator Light Power Consumption Response Time @ 0.5MPa Seal
SY5120-5LZ-01 1/8″ Electric LED 0.4W 26 or less ms H-NBR

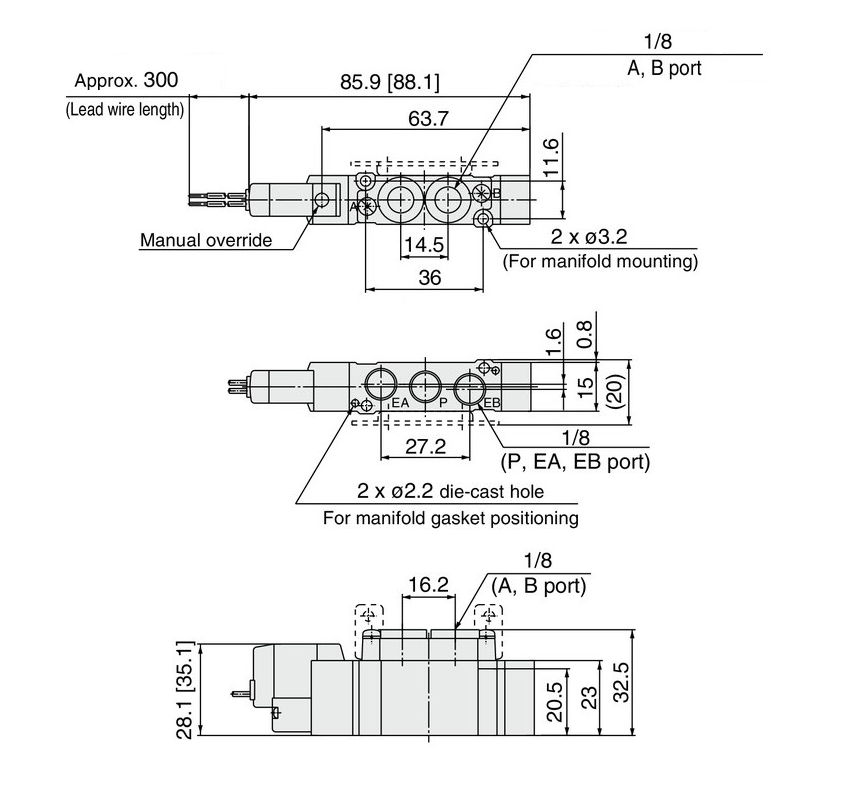

Dimensions
