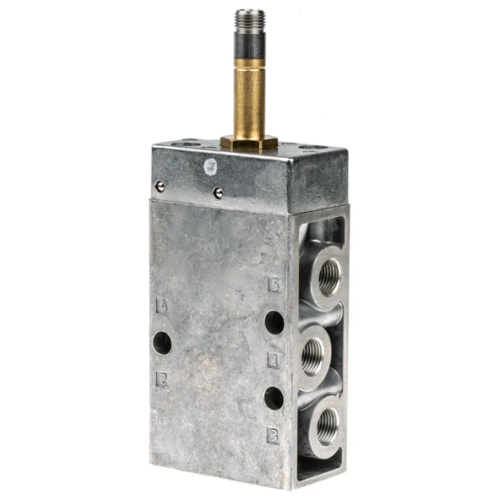

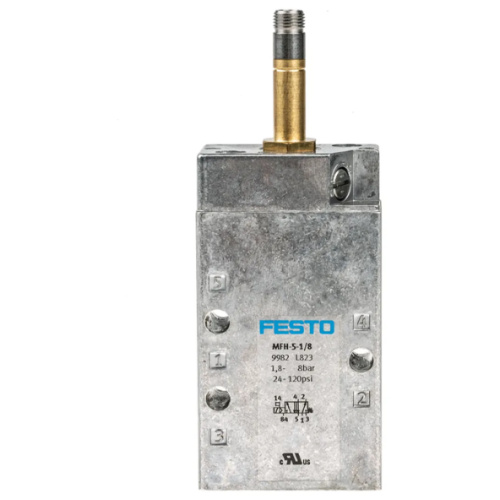

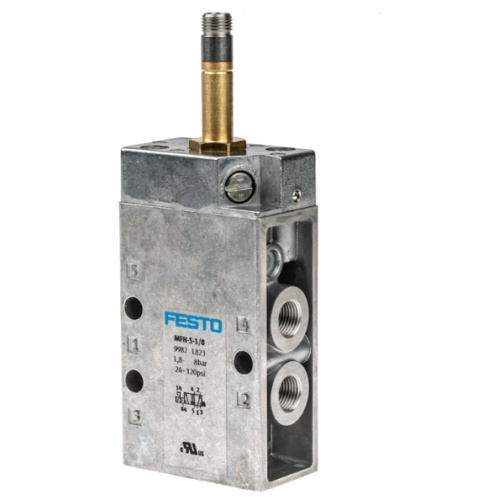

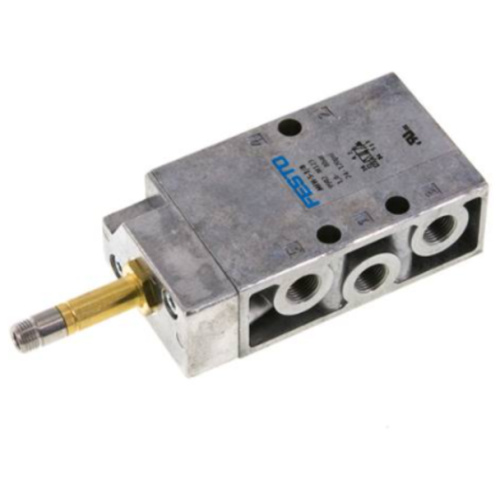

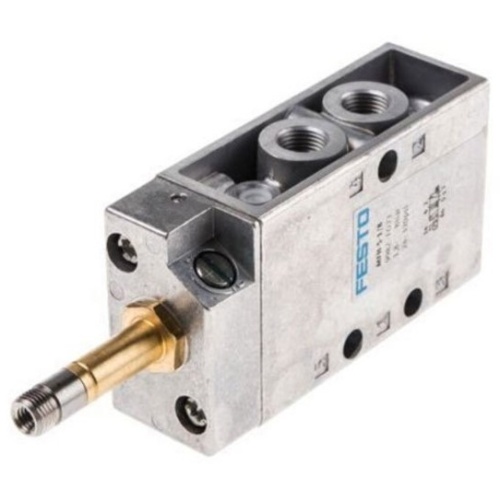

Festo MFH-5-1/8 9982 Pneumatic Single Solenoid Valve 1/8″x5/2 Way
₹3,460.00₹4,325.00 Price Excluding GST - ₹2,932.20 (-20%)
Features
- Item : Single Solenoid Valve
- Position : 5/2-Way
- Port Size : G 1/8
- Body : Aluminum Die Cast
- Design : Poppet Seat
- Operating Pressure : 1.8 – 8 bar
- Media : Air
Description
| Item | Single Solenoid Valve |
|---|---|
| Position | 5/2-Way |
| Port Size | G 1/8 |
| Design | Poppet Seat |
| Type of actuation | Electric |
| Material of Construction | Die Cast Aluminium |
| Media | Air |
| Type of mounting | Either On Manifold rail Or With through hole |
Technical Data
| Model | Port Size | Actuation Type | Media | Degree of Protection | Switching Time On/Off | Material Seals |
|---|---|---|---|---|---|---|
| MFH-5-1/8 | G 1/8 | Electric | Air | IP65 | 8 / 36 ms | NBR |
Dimensions
| Model | B1 | B2 | B3 | B4 | B6 | D1 | D2 | D4 | D5 | H1 | H2 | H3 | H4 | H5 | H6 | H7 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MFH-5-1/8
|
26 +0.2
|
3.5 ±0.15
|
3.5 ±0.15
|
-
|
22
|
G1/8
|
M5
|
M5
|
5.5
|
117
|
131
|
13.5
|
19
|
23
|
-
|
83
|
45 ±0.15
|
71
|
