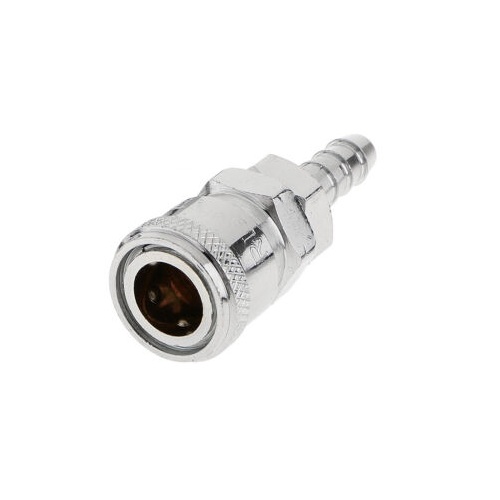

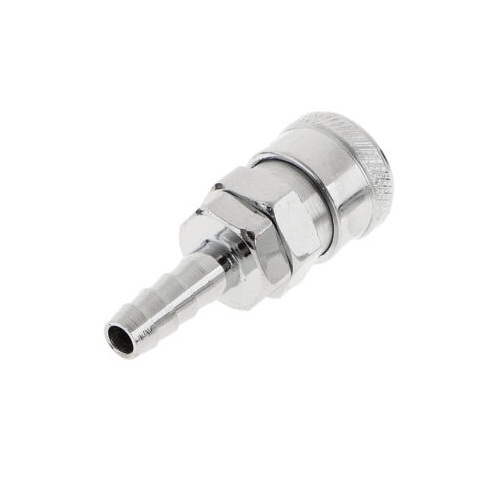

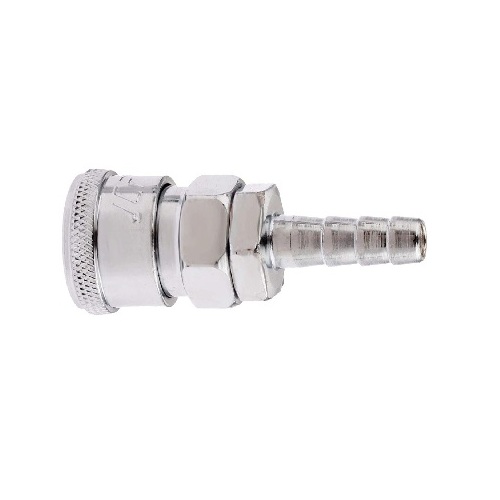

Aeroflex Pneumatic Quick Coupler 3/8 Inch Hose Socket SH30
₹120.00₹160.00 Price Excluding GST - ₹101.69 (-25%)
Features:
- Size : 3/8″ (10mm)
- Type : Socket / Coupler (with Hose Barb)
- Interchangeability : It can be coupled with all sizes and varieties of plugs/adaptors
- Body Material : Steel
- Valve : Single Check Valve
- Pressure Range : Upto 10 kg/cm2 (bar)
- Purpose : General purpose Pneumatic application
- For Other Socket / Coupler (Hose) : 1/4″ , 1/2″
- Minimum quantity required for this product: 3
Description
| Port | Refer technical data sheet (Available in Hose Shank) |
|---|---|
| End Connection | Hose Shank |
| Body Material | Steel |
| Media | Air, Water, Chemical, Gas |
| Finish | Chrome Plated |
| Other Specification Data | Available on Request |
Dimensions
| Model No. | D | L | H |
|---|---|---|---|
|
SH30
|
25
|
61
|
10
|
Technical Data
| Model No. | MoC | Coupler Type | Size |
|---|---|---|---|
| SH30 | Steel (Chrome Plated) | Socket | 3/8″ (10mm) |
* Note – Working Pressure varies with size and media
Specification
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 7 × 3 × 3 cm |
