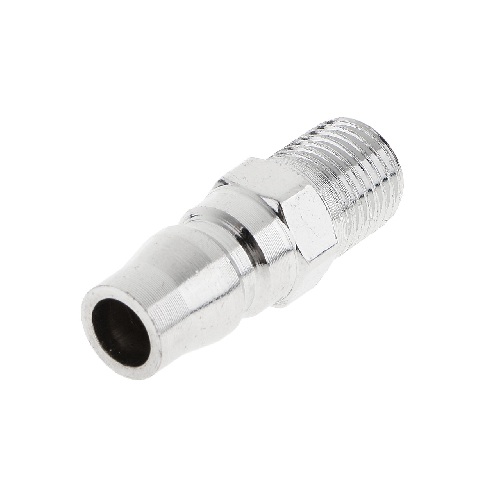

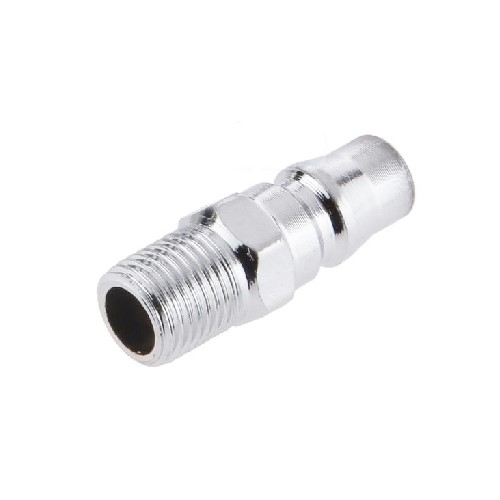

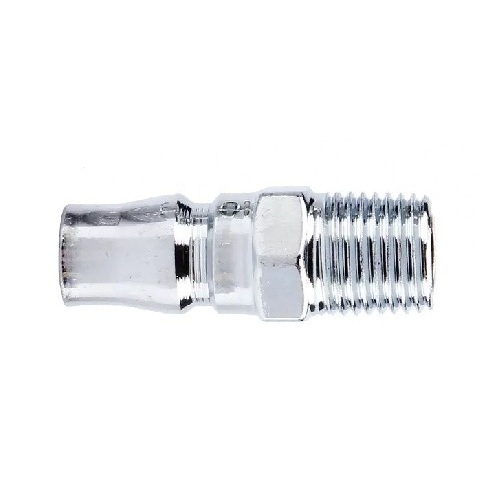

Aeroflex Pneumatic Quick Coupler 1/4 Inch Male Plug PM20
₹60.00₹80.00 Price Excluding GST - ₹50.85 (-25%)
Features:
- Size : 1/4″
- Type : Plug / Adaptor (Male Threaded)
- Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
- Body Material : Steel
- Pressure Range : Upto 10 kg/cm2 (bar)
- Purpose : General purpose Pneumatic application
- For Other Plug / Adaptor (Male Threaded) : 3/8″ , 1/2″
- Minimum quantity required for this product: 5
Description
| Port | Refer technical data sheet (Available in BSP/BSPT threading) |
|---|---|
| End Connection | Screwed |
| Body Material | Steel |
| Media | Air, Water, Chemical, Gas |
| Finish | Chrome Plated |
| Other Specification Data | Available on Request |

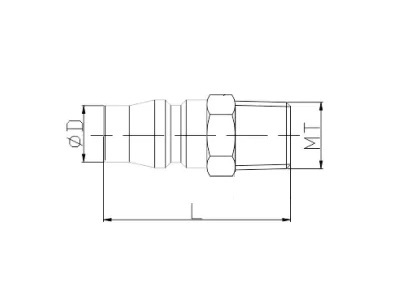

Dimensions
| Model No. | D | L | MT |
|---|---|---|---|
|
PM20
|
11
|
40
|
1/4"
|
Technical Data
| Model No. | MoC | Coupler Type | Size |
|---|---|---|---|
| PM20 | Steel (Chrome Plated) | Plug | 1/4″ |
* Note – Working Pressure varies with size and media
Specification
Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4 × 2 × 2 cm |
