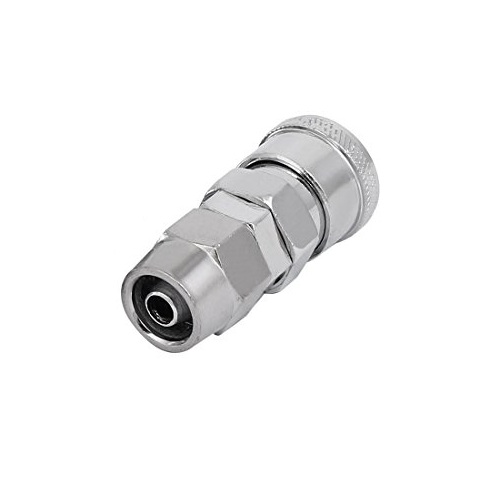

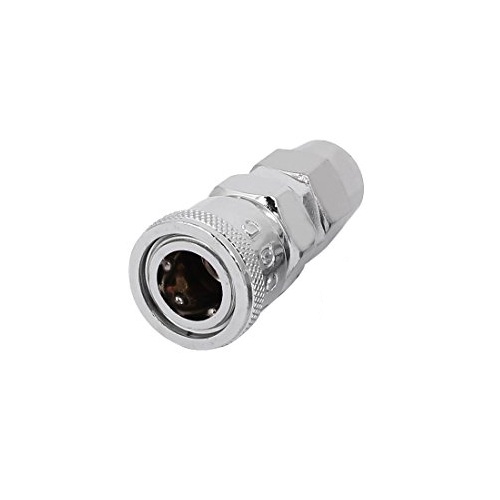

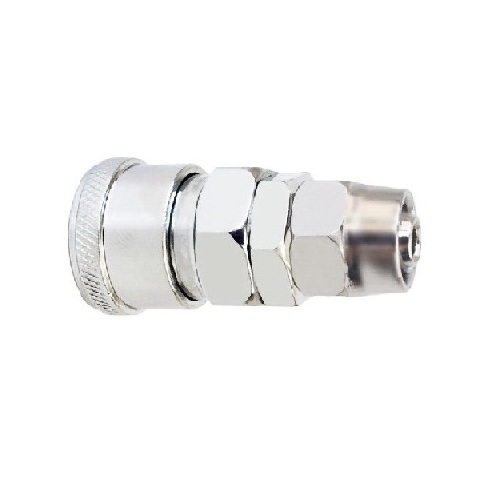

Aeroflex Pneumatic Quick Coupler 1/2 Inch PU Socket SP40
₹132.00₹176.00 Price Excluding GST - ₹111.86 (-25%)
Features:
- Size : 12mm OD
- Type : Socket / Coupler (with PU Fitting)
- Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
- Body Material : Steel
- Valve : Single Check Valve
- Pressure Range : Upto 10 kg/cm2 (bar)
- Purpose : General purpose Pneumatic application
- For Other Socket / Coupler (PU) : 1/4″ , 3/8″
- Minimum quantity required for this product: 3
Description
| Port | Refer technical data sheet (Available in PU Fitting) |
|---|---|
| End Connection | PU Fitting |
| Body Material | Steel |
| Media | Air, Water, Chemical, Gas |
| Finish | Chrome Plated |
| Other Specification Data | Available on Request |
Dimensions
| Model No. | D | L | H |
|---|---|---|---|
|
SP40
|
25
|
54
|
12
|
Technical Data
| Model No. | MoC | Coupler Type | Size |
|---|---|---|---|
| SP40 | Steel (Chrome Plated) | Socket | 12 OD |
* Note – Working Pressure varies with size and media
Specification
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 6 × 3 × 3 cm |
