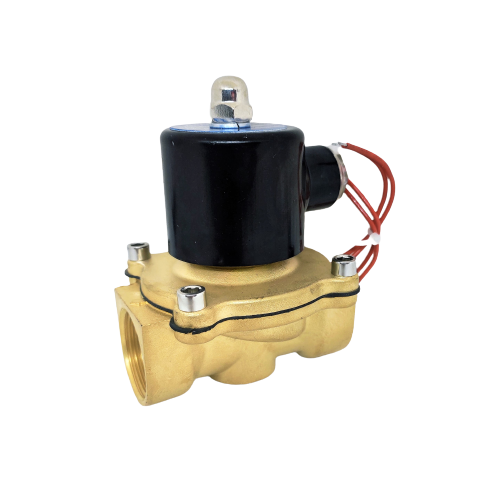

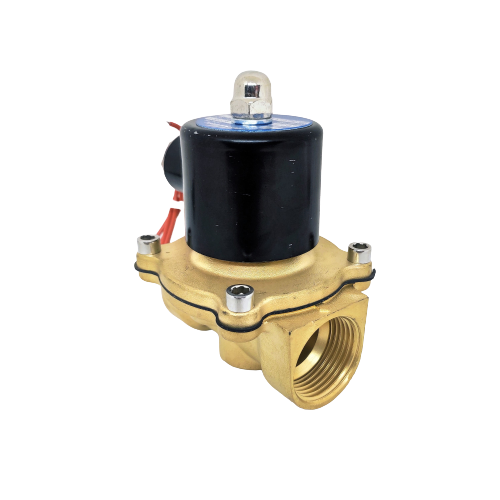

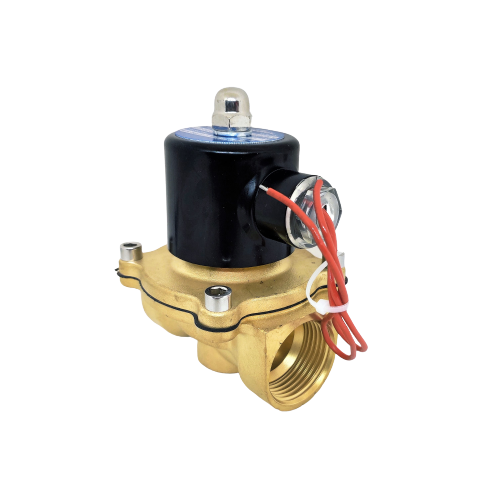

Aeroflex 3/4 Inch 2/2 Way 24V DC Normally Close Diaphragm Solenoid Valve Brass Finish – 20-2WZ

1,257.001,676.00 Price Excluding GST - 1,065.25 (-25%)

In stock

Features:

  • Size : 3/4″BSP
  • Coil Type : Metallic Casing Round Coil with Wire
  • Valve Type : 2/2 way Normally Closed Screwed End
  • Body Material : Brass Finish Alloy
  • Pressure Range : 0 to 10 kg/cm2 (bar)
  • Temperature (Media) : -5° C to 90° C
  • Seal : Nitrile (NBR)
  • Media : Suitable for Air, Water, Chemical, Gas
  • Other Specification / Data : Check the tabs given below for details

1,257.001,676.00 Price Excluding GST - 1,065.25 (-25%)

Bulk Pricing

Quantity Price
1 - 2 1,257.00
3 - 5 1,226.00
6 - 8 1,195.00
9 - 14 1,163.00
15+ 1,132.00

Description

Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed
Body Material Brass Finish Alloy
Diaphragm
Nitrile (NBR)
-5° C to 90° C
Media Temp.
Media Air, Water, Chemical, Gas
Operating Voltage 230AC & 24DC
Coil Features Easy coil change or freely movable in between as require
Other Specification Data Available on Request

NOTE: Use of filter in the inlet port is recommended.

Dimensions

Model No. G A B C D E
20-2WZ
3/4"
95
55
110
70
50

Technical Data

Model  No.   Body    Material   Pipe (Inch) Orifice (mm) Min. Operating Pressure Kg/cm² Max. Operating Pressure Kg/cm² Seal & Diaphragm   Material
20-2WZ Brass Finish Alloy 3/4″BSP 20 0 10 NBR

* NoteWorking Pressure varies with size and media
