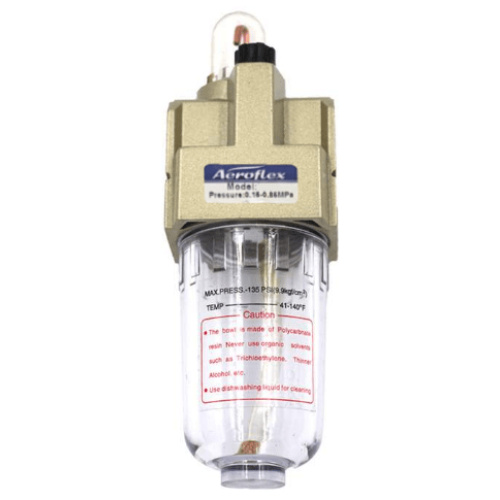

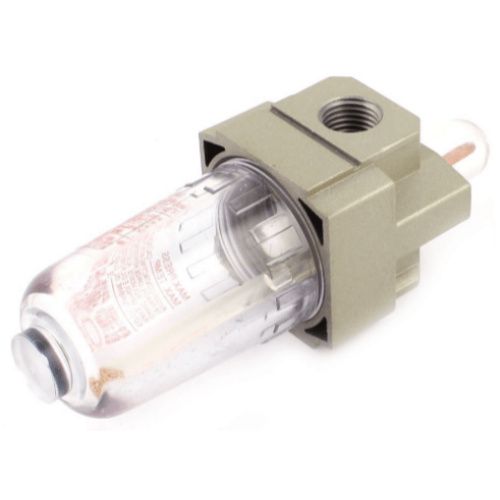

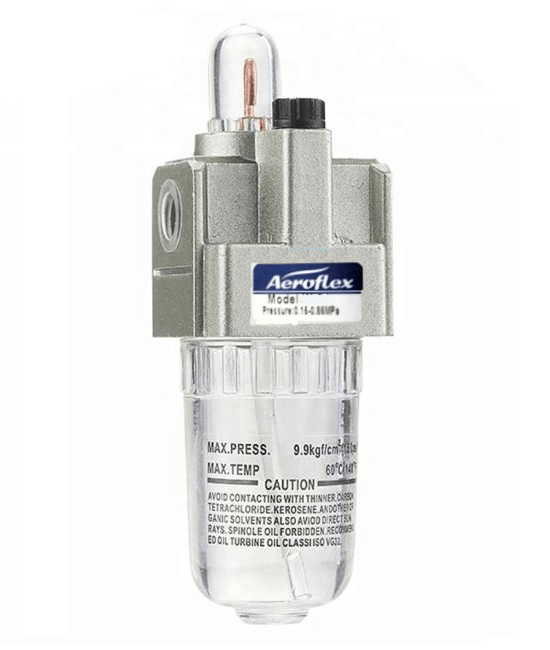

Aeroflex 1/4 Inch Pneumatic Lubricator Unit L-02 – Air Lubricator Unit
₹398.00₹531.00 Price Excluding GST - ₹337.29 (-25%)
Features
- Function: Modular Air Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Air Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Bowl Assembly | Polycarbonate Bowl |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Recommended Oil Use | ISO VG32 or Same Grade |

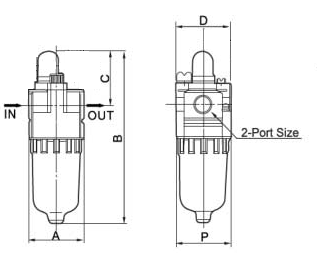

Dimensions
| Port | A | B | C | D | P |
|---|---|---|---|---|---|
|
1/4"
|
40
|
115
|
38
|
40
|
40
|
Technical Data
| Model | Port Size | Bowl Guard | Fluid | Temperature | Oil Use | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| L-02 | 1/4″ BSP | NA | Air | 5 to 60deg C | ISO VG32 | 0.5 to 8.5 Bar | 800 |
