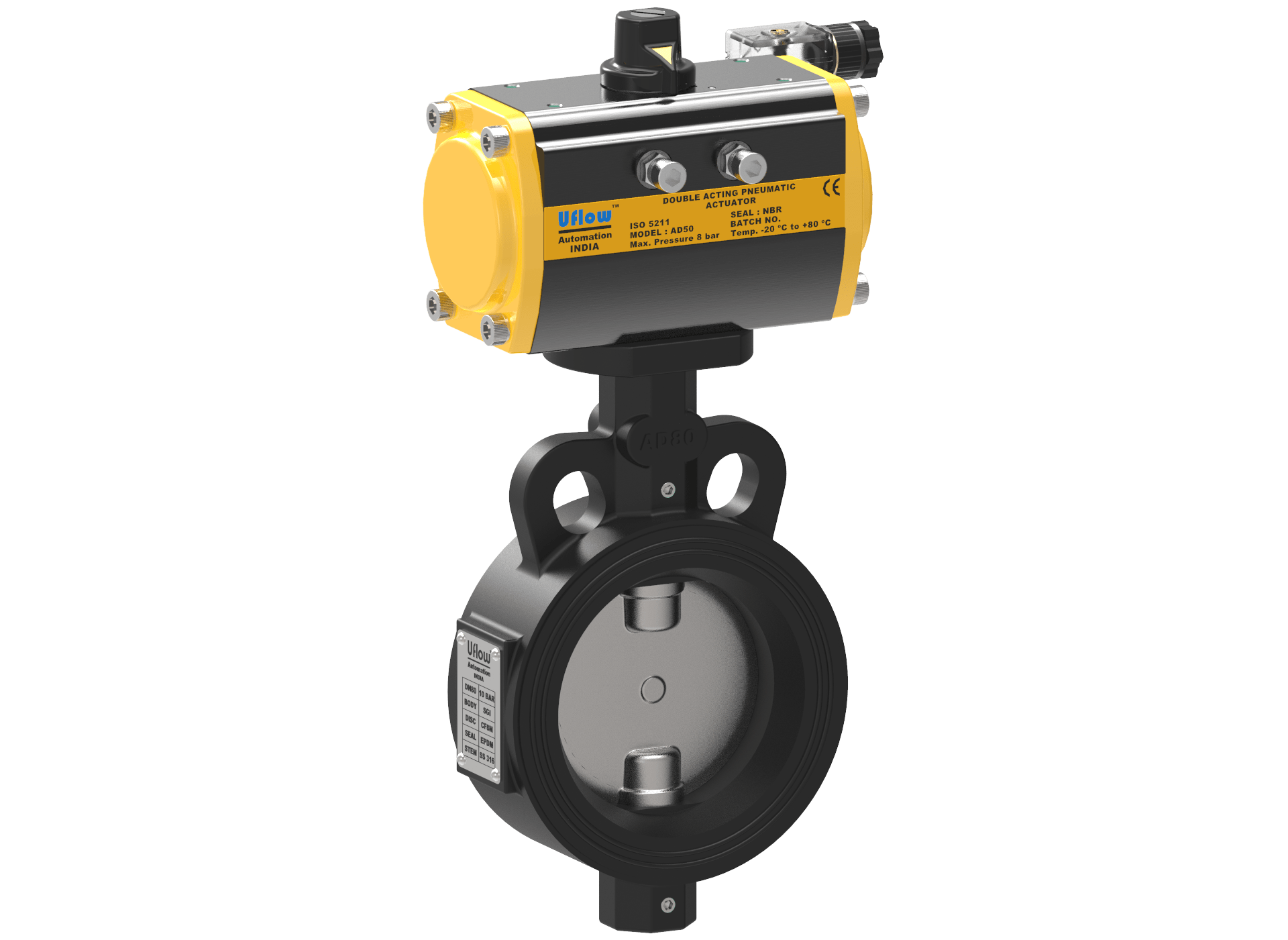

Uflow 4 Inch/100mm CI Body PN10 Pneumatic Butterfly Valve with Double Acting Actuator and Solenoid Valve 24v DC

Brand UFLOW
₹ 11032 (Incl. of all taxes)
₹ 9349 + ₹ 1683 GST
MRP ₹13790
1.1/2"
2"
2.1/2"
3"
4"
5"
6"
8"
10"
12"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 7.5 KG
DESIGN STANDARD IS 13095, Bi-directional zero leakage butterfly valve
END CONNECTION Wafer end
OPERATOR Actuator Operated
MOUNTING Can be mounted between flanges as per ASME, BS-10 and ISO Pad for actuator
FLANGE ACCOMMODATION ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H
LEAKAGE CLASS 100% tightness at full differential Pressure.
DISC ROTATION 360 Degree
TESTING 100% tested under Water and Pneumatic
PRESSURE RATING PN10 & PN16
NOMINAL DIAMETER DN50 - DN200

NOTE: Other options of Seat Material / Pressure Range / Body Material and Additional Attachments only on request.

Model No. BWIBAD63DCSJ1R
Body Material CI
Disc Material CF8 (SS304)
Stem Material SS 410
Pipe Size (Inch) 4"
Pressure Rating #PN10
Seat EPDM
Accessories Solenoid Valve 24v DC

* Note – Body material : WCB / CF8 / CF8M | Disc Material : DI / WCB / CF8M available on request.

Valve Size 4" / 100mm
End Connection Wafer - API 609 (CAT - A)
Actuator Type - Double Acting / Size - 50
Attachment Namur Solenoid Valve
Body Material CI Body (FG210)
Disc Material SS304
Stem Design / Material Single Shaft / ASTM A 276 TYPE SS 410
Seat Material EPDM
Pressure Rating PN10
View PDF

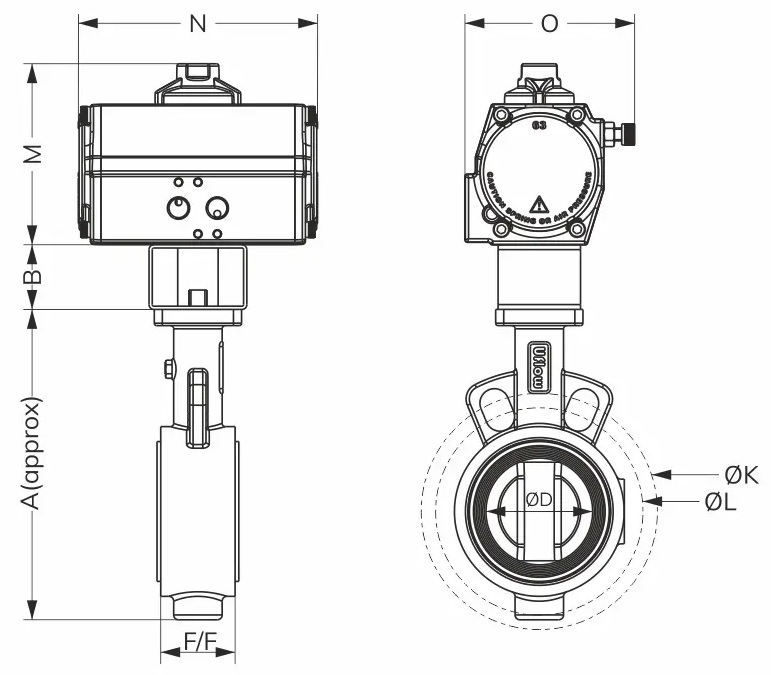

Model No. A B OD F/F OK OL M N O ISO
BWIB11AD63 243 - 100 52 190 179 112 147 105 F07
