Uflow 3/8 Inch 2/2 Way Semi-Lift Diaphragm Operated Solenoid Valve Brass Body (0 - 10 Bar) with IP67 Flame Proof Coil - Screwed Ends

Uflow 3/8 Inch 2/2 Way Semi-Lift Diaphragm Operated Solenoid Valve Brass Body (0 - 10 Bar) with IP67 Flame Proof Coil - Screwed Ends

Brand UFLOW

₹ 3768 (Incl. of all taxes)

₹ 3193 + ₹ 575 GST

MRP ₹4709

Select Options:

230v AC

24v DC

110v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1.3 KG

PORT

Refer technical data sheet (Available in BSP threading)

END CONNECTION

Screwed

BODY MATERIAL

Forged Brass

DIAPHRAGM
MEDIA TEMP.

Nitrile (NBR)	EPDM	Viton (FKM)	PTFE
-30° C to 90° C	-10° C to 140° C	-10° C to 180° C	-10° C to 180° C

CIRCUMSTANCE TEMP.

-10° C to 70° C

MEDIA

Air, Water, Chemical, Gas

MAIN FEATURES

Internal parts are in superior corrosion resistance steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications & highly corrosive environments.

OPERATING VOLTAGE
POWER CONSUMPTION

24AC	110AC	230AC	12DC	24DC
7W	8W	8W / 15W	10W	11W

COIL FEATURES

High reliability unaffected by voltage surges. Easy coil change. Coil lockable in 4 × 90° positions or freely movable in between as required.

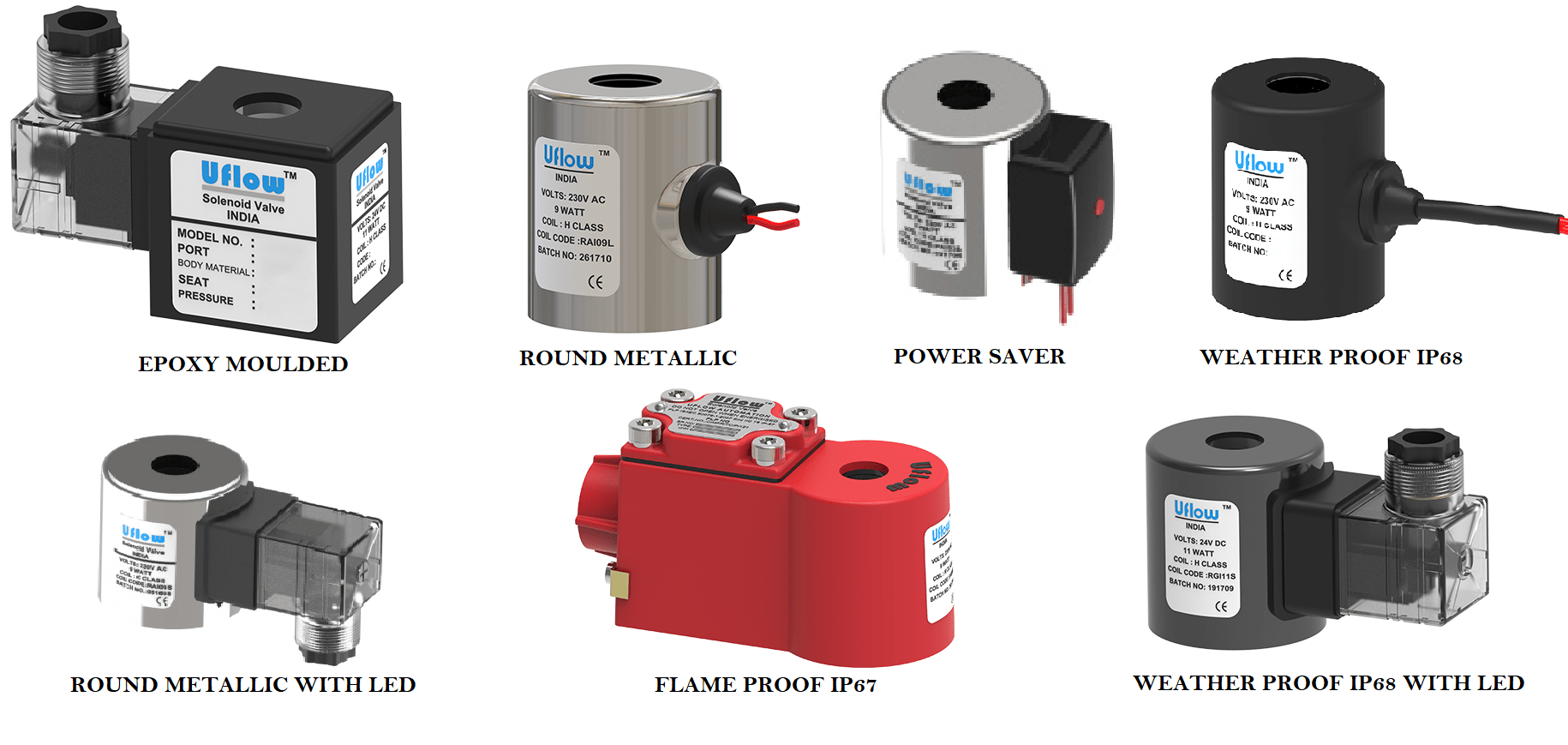

COIL TYPES

Metallic round coil with wire, metallic round coil with LED, epoxy moulded coil with LED, IP-68 weatherproof coil, power saver coil.

OPTIONAL FEATURE

90% Power saver series also available, Manual Override, Water hammering reducer available to avoid water hammer forces.

OTHER SPECIFICATION DATA

Available on Request

NOTE 1: Seal - NBR as standard. Rest - Optional.

NOTE 2: Use of filter in the inlet port is recommended.

Model No.	MBN74
Body Material	Forged Brass
Pipe Size (Inch)	3/8"
Orifice (mm)	12.00
Min. Operating Pressure (kg/cm²)	0
Max. Operating Pressure (kg/cm²)	10
Seal & Diaphragm Material	NBR
Flow Factor Kv (m³/hr)	1.50

* Note – Seal : EPDM / VITON / PTFE on request

Size	3/8"BSP
Coil Type	IP-67 Flame Proof Coil
Valve Type	2/2 way Brass Body Normally Close
Body Material	Forged Brass Body
Pressure Range	0 to 10 kg/cm2 (bar)
Temperature (Media)	-30° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Chemical, Gas
Other Specification / Data	Check the tabs given below for details
