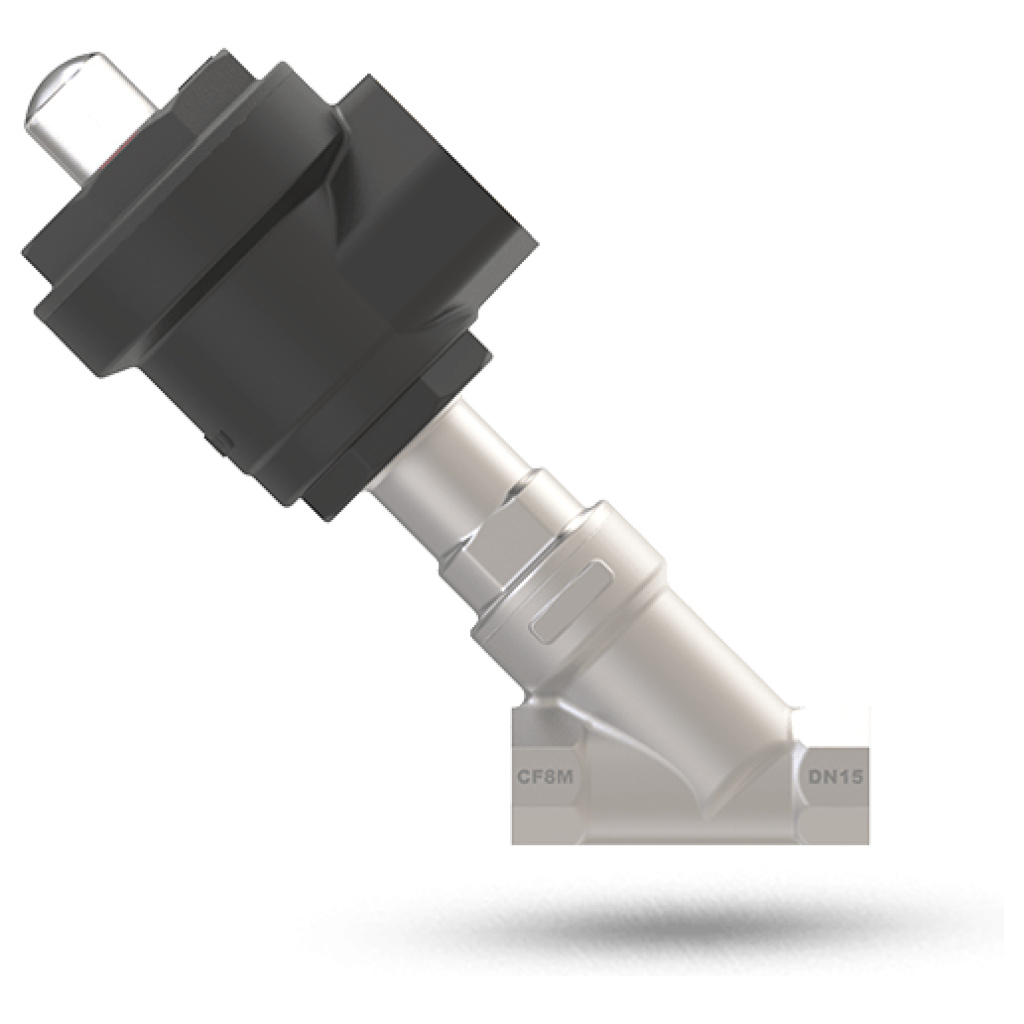

Uflow 3/4 Inch Angle Seat Valve - 3/4 Inch Y Type Pneumatic Control Valve with Plastic Operator SS Body (0 - 16 Bar) NC/Bi-Directional - Screwed End

Brand UFLOW
₹ 3078 (Incl. of all taxes)
₹ 2608 + ₹ 470 GST
MRP ₹3847
1/2"
3/4"
1"
1.1/2"
2"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 1.5 KG
PORT Refer technical data sheet (Available in BSP threading)
END CONNECTION Screwed
BODY MATERIAL SS 304 / CF8
BODY SLEEVE & SHAFT SS 304
MEDIA PRESSURE 0 - 16 Bar
SEAT
MEDIA TEMP.
TEFLON (PTFE)
-10° C to 180° C
CIRCUMSTANCE TEMP. -10° C to 70° C
MEDIA Steam, Air, Water, Gases, Chemical, Oil, Diesel etc.
ACTUATOR COVER SS 304
ACTUATOR PLATE Aluminium Die Cast
ACTUATOR WORKING PRESSURE 3.5 to 7 Bar (Not recommened for pressure above 7 Bar)
LIFE More than 10 million cycles
OTHER SPECIFICATION DATA Available on Request
RECOMMENDATION Use of Filter in the inlet port

NOTE 1: Optional Seal: VITON / SILICON / EPDM on request

NOTE 2: Optional Thread: NPT on request

YCP35 Circuit Diagram
Model No. YCP35
Body Material SS 304
Pipe Size (Inch) 3/4"
Orifice (mm) 20
Min. Operating Pressure (kg/cm²) 0
Max. Operating Pressure (kg/cm²) 16
Seal & Diaphragm Material PTFE
Flow Factor Kv (m³/hr) 10.90

* Note – Seal : EPDM / Viton / Silicon on request

Size 3/4"BSP
Valve Type Single Acting (NC / Bi-directional)
Body Material SS304 (ASTM A351 Grade CF8)
Media Pressure Range 0 to 16 kg/cm2 (bar)
Actuator Pressure Range 3.5 to 7 kg/cm2 (bar)
Seat Teflon (PTFE)
Temperature (Media) -10° C to 180° C
Media Steam, Air, Water, Gases, Chemicals, Oil
Applications To regulate the flow of liquids, gases, steam, high Viscosity media and harsh applications
Other Specification / Data Check the tabs given below for details
View PDF
Model No. Port Size A B C D ØE F G H I
ACP355 3/4" 77 160.1 140.9 170.6 70 24 G1/4" 32 M5
