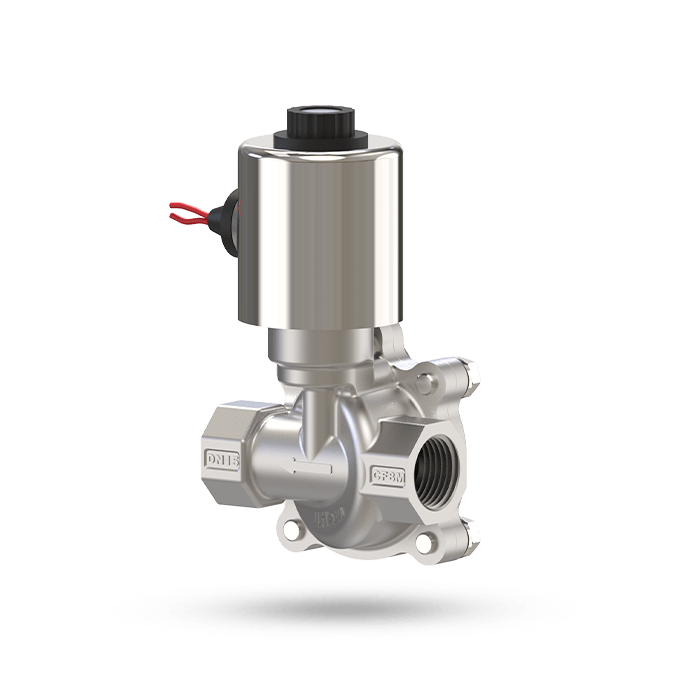

Uflow 3/4 Inch 2/2 Way High Pressure Diaphragm Solenoid Valve SS304 with IP68 Weather Proof Coil - Screwed Ends

Uflow 3/4 Inch 2/2 Way High Pressure Diaphragm Solenoid Valve SS304 with IP68 Weather Proof Coil - Screwed Ends

Brand UFLOW

₹ 3249 (Incl. of all taxes)

₹ 2753 + ₹ 496 GST

MRP ₹4061

Select Options:

230v AC

24v DC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1.05 KG

Port

Refer technical data sheet (Available in BSP threading)

End Connection

Screwed

Body Material

SS ASTM A351 Grade CF8

Diaphragm & Media Temp.

Nitrile (NBR)	EPDM	Viton (FKM)
-30° C to 90° C	-10° C to 140° C	-10° C to 180° C

Media

Air, Water, Chemical, Gas

Main Features

Internal parts are in superior corrosion-resistant steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications & Highly corrosive environments.

Operating Voltage & Power Consumption

230AC	24DC
8W	11W

Coil Features

High reliability, unaffected by voltage surges. Easy coil changes; coil lockable in 4×90° positions or freely movable as required.

Other Coil Types

Metallic Round Coil with Wire, Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-67 Flame Proof Coil, Power Saver Coil

Optional Feature

90% Power saver series also available
Manual Override
Water hammering reducer also available to avoid water hammer forces

Other Specification Data

Available on Request

NOTE: Use of filter in the inlet port is recommended.

Model No.	PCN3G
Body Material	CF8 (SS304)
Pipe Size (Inch)	1/2"
Orifice (mm)	17
Min. Operating Pressure (kg/cm²)	1
Max. Operating Pressure (kg/cm²)	20
Seal & Diaphragm Material	NBR
Flow Factor Kv (m³/hr)	3.20

Note: Body material CF8M (SS316) available on request. Seal options EPDM / Viton available on request.

Size	3/4"BSP
Coil Type	IP-68 Weather Proof Coil with Lead Wire
Valve Type	High Pressure 2/2 way Normally Closed Screwed End
Body Material	SS304 (ASTM A351 Grade CF8)
Pressure Range	1 to 20 kg/cm2 (bar)
Temperature (Media)	-30° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Chemical, Gas
Other Specification / Data	Check the tabs given below for details
