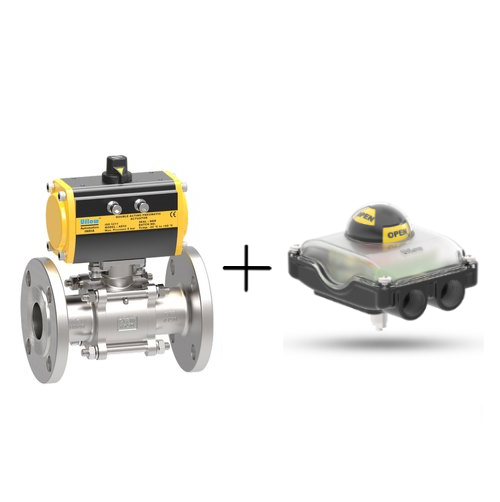

Uflow 3 Inch / 80mm SS304 Pneumatic Ball Valve Flanged End with Double Acting Actuator and Limit Switch

Uflow 3 Inch / 80mm SS304 Pneumatic Ball Valve Flanged End with Double Acting Actuator and Limit Switch

Brand UFLOW

₹ 24608 (Incl. of all taxes)

₹ 20854 + ₹ 3754 GST

MRP ₹30759

Select Options:

1/2"

3/4"

1.1/4"

1.1/2"

2.5"

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	24 KG

PNEUMATIC ROTARY ACTUATOR
BODY	Aluminum extruded, hard-anodized corrosion resistance
DESIGN	Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design
PERFORMANCE	Low air consumption with max. Torque
OPERATION	Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
BODY	Valve / stem / Ball - SS304(CF8) - Flanged End
BORE	Full port
DESIGN STANDARD	ASME B16.10, ASME B16.25, ASME B16.34, ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
PERFORMANCE	Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque
LIMIT SWITCH
DESIGN	Compact & Lightweight
INDICATOR	Indication Dome inbuilt with transparent cover for open/close indication
PROTECTION	Weatherproof Limit Switch
TEMPERATURE	-20°C to 80°C
CONTACT	1NO-NC / 2NO-NC options available

NOTE: Additional configurations and material options available on request.

* Note – Body material CF8M (SS316) available on request.
