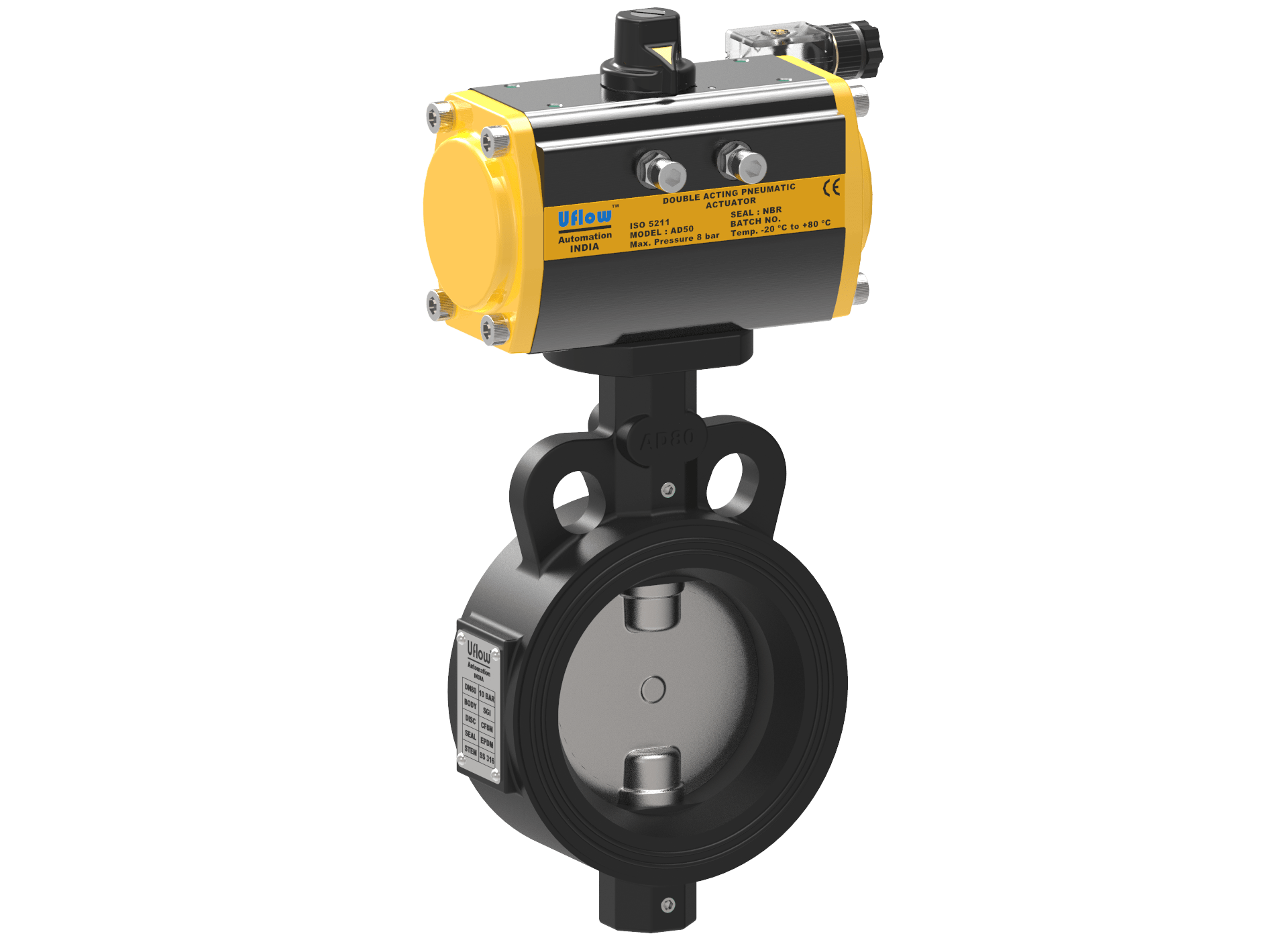

Uflow 3 Inch / 80mm Pneumatic Actuator Operated CI Butterfly Valve PN10 with Solenoid Valve 24v DC

Brand UFLOW
₹ 6749 (Incl. of all taxes)
₹ 5719 + ₹ 1030 GST
MRP ₹8436
230v AC
230v AC
24v DC
24v DC
110v AC
110v AC
12v DC
12v DC
24v AC
24v AC
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 4 KG
DESIGN STANDARD IS 13095, Bi-directional zero leakage butterfly valve
END CONNECTION Wafer end
OPERATOR Actuator Operated
MOUNTING Can be mounted between flanges as per ASME, BS-10 and ISO Pad for actuator
FLANGE ACCOMMODATION ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H
LEAKAGE CLASS 100% tightness at full differential Pressure.
DISC ROTATION 360 Degree
TESTING 100% tested under Water and Pneumatic
PRESSURE RATING PN10 & PN16
NOMINAL DIAMETER DN50 - DN200

NOTE: Other options of Seat Material / Pressure Range / Body Material and Additional Attachments only on request.

No Technical Data Available

Valve Size 3" / 80mm
End Connection Wafer - API 609 (CAT - A)
Actuator Type - Double Acting / Size - 50
Attachment Namur Solenoid Valve
Body Material CI Body (FG210)
Disc Material SS304
Stem Design / Material Single Shaft / ASTM A 276 TYPE SS 410
Seat Material EPDM
Pressure Rating PN10
View PDF

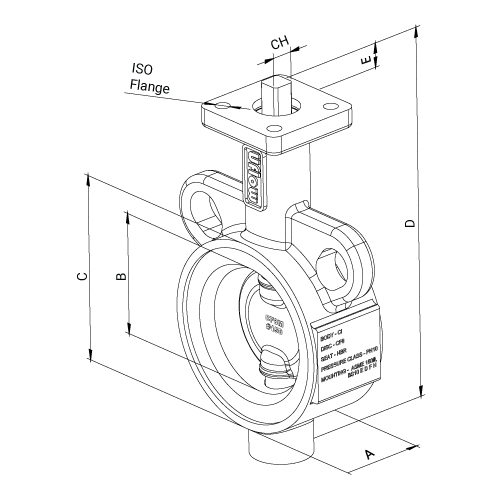

Model No. A B C D E CH ISO
RINAACAWI 46 80 122 242 13 11 F05
