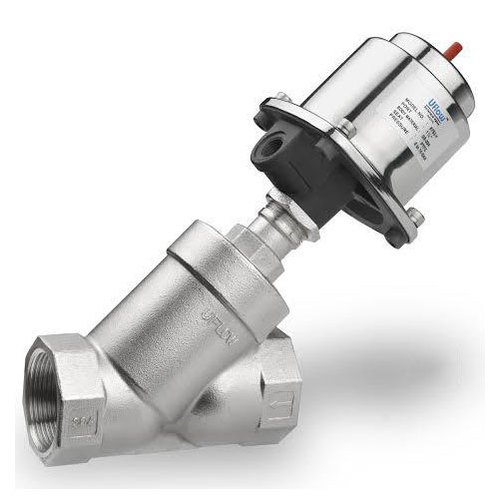

Uflow 2 Inch Angle Seat Valve - 2 Inch Y Type Pneumatic Control Valve with Steel Operator SS Body (0 - 7 Bar) Screwed End - Normally Close

Brand UFLOW
₹ 6250 (Incl. of all taxes)
₹ 5297 + ₹ 953 GST
MRP ₹7812
1/2"
3/4"
1"
1.1/4"
1.1/2"
2"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 3.5 KG
PORT Refer technical data sheet (Available in BSP threading)
END CONNECTION Screwed
BODY MATERIAL SS 304 / CF8
BODY SLEEVE & SHAFT SS 304
MEDIA PRESSURE 0 - 7 Bar
SEAT
MEDIA TEMP.
TEFLON (PTFE)
-10° C to 180° C
CIRCUMSTANCE TEMP. -10° C to 70° C
MEDIA Steam, Air, Water, Gases, Chemical, Oil, Diesel etc.
ACTUATOR COVER SS 304
ACTUATOR PLATE Aluminium Die Cast
ACTUATOR WORKING PRESSURE 3.5 to 7 Bar (Not recommended for pressure above 7 Bar)
LIFE More than 10 million cycles
OTHER SPECIFICATION DATA Available on Request

NOTE 1: Optional Seal: VITON / SILICON / EPDM on request

NOTE 2: Optional Thread: NPT on request

NOTE: Use of Filter in the inlet port is recommended.

YCP83 Circuit Diagram
Model No. YCP83
Body Material SS 304
Pipe Size (Inch) 2"
Orifice (mm) 50
Min. Operating Pressure (kg/cm²) 0
Max. Operating Pressure (kg/cm²) 7
Seal & Diaphragm Material PTFE
Flow Factor Kv (m³/hr) 68

* Note – Seal : EPDM / Viton / Silicon on request

Size 2"BSP
Valve Type Single Acting Normally Closed Screwed Ends
Body Material SS304 (ASTM A351 Grade CF8)
Media Pressure Range 0 to 7 kg/cm2 (bar)
Actuator Pressure Range 3.5 to 7 kg/cm2 (bar)
Seat Teflon (PTFE)
Temperature (Media) -10° C to 180° C
Media Steam, Air, Water, Gases, Chemicals, Oil
Applications To regulate the flow of liquids, gases, steam, high Viscosity media and harsh applications
Other Specification / Data Check the tabs given below for details
View PDF

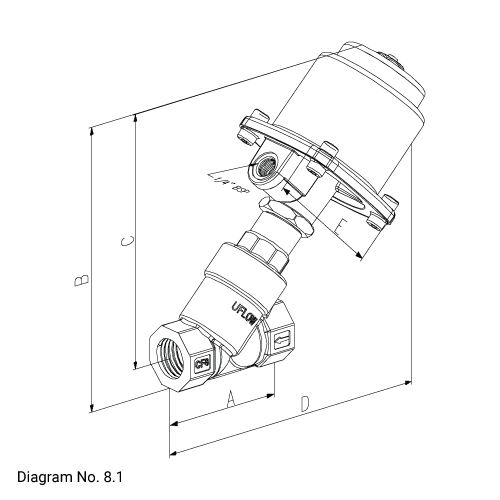

Model No. Port Size A B C D E
YCP83 2" 150 225 191 234 90
₹ 6250.00
In Stock
Prepaid
Accepted
Part COD
Accepted
Full COD
Unavailable
Return
Accepted
As per return policy
