Uflow 2 Inch 2/2 Way Normally Close Pilot Operated Diaphragm Solenoid Valve SS304 with IP67 Flame Proof Coil - Flanged Ends

Uflow 2 Inch 2/2 Way Normally Close Pilot Operated Diaphragm Solenoid Valve SS304 with IP67 Flame Proof Coil - Flanged Ends

Brand UFLOW

₹ 13700 (Incl. of all taxes)

₹ 11610 + ₹ 2090 GST

MRP ₹17125

Select Options:

230v AC

24v DC

110v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	8.25 KG

Port

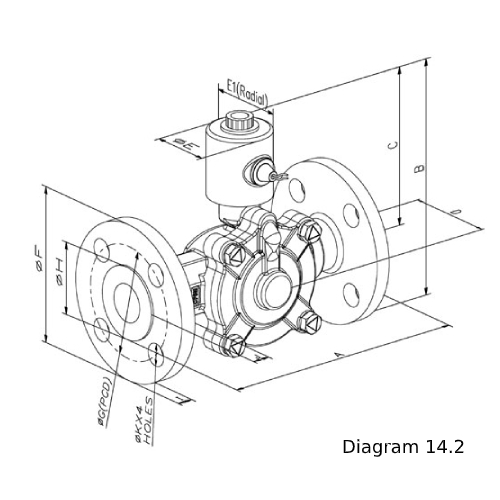

Refer technical data sheet

End Connection

Flanged

Body Material

SS ASTM A351 Grade CF8

Diaphragm & Media Temp.

Nitrile (NBR)	EPDM	Viton (FKM)
-30° C to 90° C	-10° C to 140° C	-10° C to 180° C

Media

Air, Water, Chemical, Gas

Main Features

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment

Operating Voltage & Power Consumption

24AC	110AC	230AC	12DC	24DC
7W	8W	8W	10W	11W

Coil Features

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require..

Other Coil Types

Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil

Optional Feature

90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.

Other Specification Data

Available on Request

NOTE: Use of filter in the inlet port is recommended.

Model No.	PCN88F
Body Material	CF8 (SS304)
Pipe Size (Inch)	2"
Orifice (mm)	48
Min. Operating Pressure (kg/cm²)	0.5
Max. Operating Pressure (kg/cm²)	12
Seal & Diaphragm Material	NBR
Flow Factor Kv (m³/hr)	29.90

Note: Body material CF8M (SS316) available on request. Seal options EPDM / Viton available on request.

Size	2"
Coil Type	IP-67 Flame Proof Coil
Valve Type	2/2 way Normally Closed Flanged End
Body Material	SS304 (ASTM A351 Grade CF8)
Pressure Range	0.5 to 12 kg/cm2 (bar)
Temperature (Media)	-30° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Chemical, Gas
Other Specification / Data	Check the tabs given below for details
