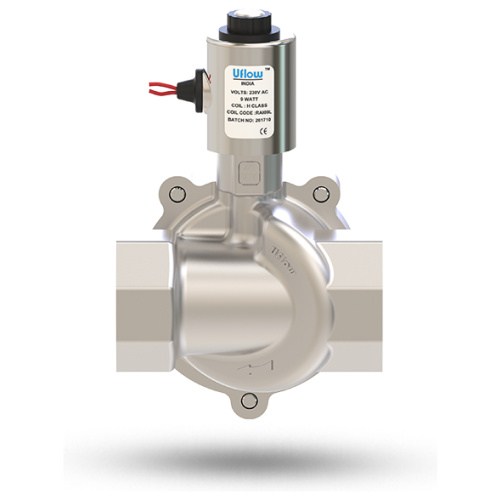

Uflow 1.1/4 Inch 2/2 Way Normally Close Pilot Operated Diaphragm Solenoid Valve SS304 with Metallic Round Coil - Screwed Ends

Uflow 1.1/4 Inch 2/2 Way Normally Close Pilot Operated Diaphragm Solenoid Valve SS304 with Metallic Round Coil - Screwed Ends

Brand UFLOW

₹ 5097 (Incl. of all taxes)

₹ 4319 + ₹ 778 GST

MRP ₹6371

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	2.15 KG

Port

Refer technical data sheet (Available in BSP threading)

End Connection

Screwed

Body Material

SS ASTM A351 Grade CF8

Diaphragm & Media Temp.

Nitrile (NBR)	EPDM	Viton (FKM)
-30°C to 90°C	-10°C to 140°C	-10°C to 180°C

Media

Air, Water, Chemical, Gas

Main Features

Internal parts are made of superior corrosion-resistant steel (equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications & highly corrosive environments.

Operating Voltage & Power Consumption

24 AC	110 AC	230 AC	12 DC	24 DC
7 W	8 W	8 W	10 W	11 W

Coil Features

High reliability, unaffected by voltage surges. Easy coil changes; coil lockable in 4 × 90° positions or freely movable in between as required.

Other Coil Types

Metallic round coil with LED, Epoxy moulded coil with LED, IP-68 weatherproof coil, IP-67 flameproof coil, Power saver coil.

Optional Feature

90% power saver series available, Manual Override, Water hammering reducer to avoid water hammer forces.

Other Specification Data

Available on request

NOTE: Use of filter in the inlet port is recommended.

Model No.	PCN58
Body Material	CF8 (SS304)
Pipe (Inch)	1 1/4"
Orifice (mm)	36
Min. Operating Pressure (Kg/cm²)	0.5
Max. Operating Pressure (Kg/cm²)	12
Seal & Diaphragm Material	NBR
Flow Factor Kv (m³/hr)	12.20

Note: Body material CF8M (SS316) available on request. Seal options EPDM / Viton available on request.

Size	1.1/4"BSP
Coil Type	Metallic Round Coil with Lead Wire
Valve Type	2/2 way Normally Closed Screwed End
Body Material	SS304 (ASTM A351 Grade CF8)
Pressure Range	0.5 to 12 kg/cm2 (bar)
Temperature (Media)	-30° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Chemical, Gas
Other Specification / Data	Check the tabs given below for details
