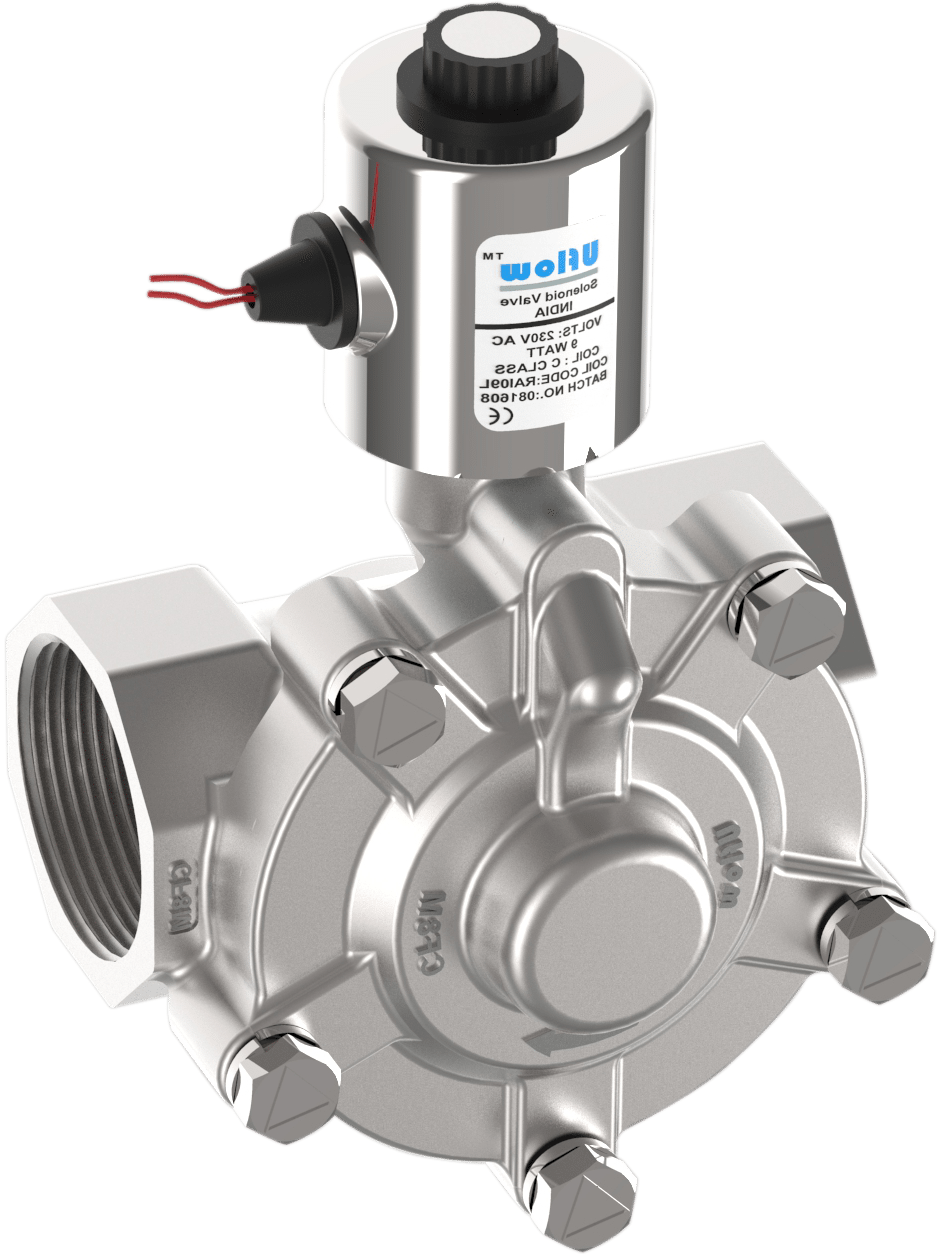

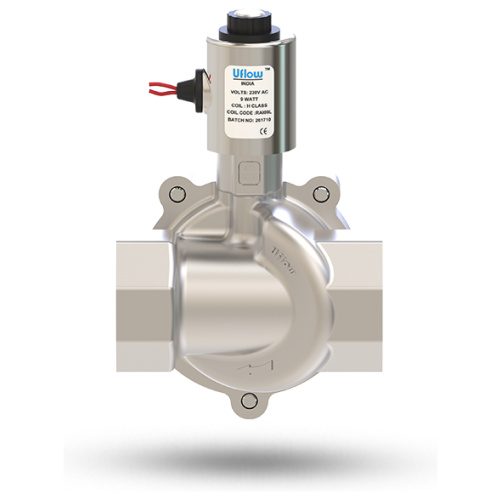

Uflow 1.1/2 Inch 2/2 Way Normally Open Pilot Operated Diaphragm Solenoid Valve SS304 with Metallic Round Coil - Screwed Ends

Brand UFLOW
₹ 8376 (Incl. of all taxes)
₹ 7098 + ₹ 1278 GST
MRP ₹10470
230v AC
24v DC
110v AC
12v DC
24v AC
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 2 KG
Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed
Body Material SS ASTM A351 Grade CF8
Diaphragm & Media Temp.
Nitrile (NBR) EPDM Viton (FKM)
-30° C to 90° C -10° C to 140° C -10° C to 180° C
Media Air, Water, Chemical, Gas
Main Features Internal parts are made of superior corrosion-resistant steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications, and highly corrosive environments.
Operating Voltage & Power Consumption
24 AC 110 AC 230 AC 12 DC 24 DC
7 W 8 W 8 W 10 W 11 W
Coil Features High reliability; unaffected by voltage surges. Easy coil changes; coil lockable in 4×90° positions or freely movable in between as required.
Other Coil Types Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil
Optional Feature
  • 90% Power saver series also available
  • Manual Override
  • Water hammering reducer also available to avoid water hammer forces
Other Specification Data Available on Request

NOTE: Use of filter in the inlet port is recommended.

2/2 NO Solenoid Valve Diagram
Model No. PCN68Z
Body Material CF8 (SS304)
Pipe Size (Inch) 1 1/2"
Ori​fice (mm) 36
Min. Operating Pressure (kg/cm²) 0.5
Max. Operating Pressure (kg/cm²) 12
Seal & Diaphragm Material NBR
Flow Factor Kv (m³/hr) 17.10

Note: Body material CF8M (SS316) available on request. Seal options EPDM / Viton available on request.

Size 1.1/2"BSP
Coil Type Metallic Round Coil with Lead Wire
Valve Type 2/2 way Normally Open Screwed End
Body Material SS304 (ASTM A351 Grade CF8)
Pressure Range 0.5 to 12 kg/cm2 (bar)
Temperature (Media) -30° C to 90° C
Seal Nitrile (NBR)
Media Suitable for Air, Water, Chemical, Gas
Other Specification / Data Check the tabs given below for details
View PDF

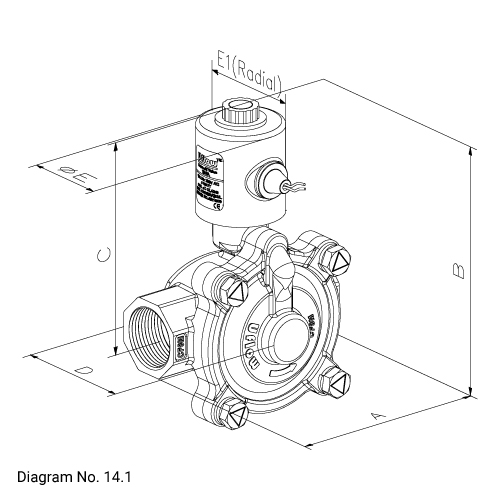

Model No. Port Size Diagram No A B C D E E1
PCN68Z 1.1/2" 14.1 108 180 124 88 48 57
