Uflow 1.1/2 Inch 2/2 Way Normally Close Pilot Operated Diaphragm Solenoid Valve SS304 with Epoxy Moulded LED Coil - Screwed Ends

Brand UFLOW
₹ 5149 (Incl. of all taxes)
₹ 4364 + ₹ 785 GST
MRP ₹6436
230v AC
24v DC
110v AC
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 1.8 KG
Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed
Body Material SS ASTM A351 Grade CF8
Diaphragm & Media Temp.
Nitrile (NBR) EPDM Viton (FKM)
-30°C to 90°C -10°C to 140°C -10°C to 180°C
Media Air, Water, Chemical, Gas
Main Features Internal parts are made of superior corrosion-resistant steel (equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications & highly corrosive environments.
Operating Voltage & Power Consumption
230 AC 110 AC 24 DC
8 W 8 W 11 W
Coil Features High reliability; unaffected by voltage surges. Easy coil changes; coil lockable in 4 × 90° positions or freely movable in between as required.
Other Coil Types Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weatherproof Coil, IP-67 Flameproof Coil, Power Saver Coil.
Optional Feature 90% Power saver series available, Manual Override, Water hammering reducer available to prevent water hammer forces.
Other Specification Data Available on request

NOTE: Use of filter in the inlet port is recommended.

Circuit Diagram
Model No. PCN68
Body Material CF8 (SS304)
Pipe (Inch) 1.1/2"
Ori​fice (mm) 36
Min. Operating Pressure (Kg/cm²) 0.5
Max. Operating Pressure (Kg/cm²) 12
Seal & Diaphragm Material NBR
Flow Factor Kv (m³/hr) 17.10

Note: Body material CF8M (SS316) available on request. Seal options EPDM / Viton available on request.

Size 1.1/2"BSP
Coil Type Epoxy Moulded Square Coil with LED DIN Connector
Valve Type 2/2 way Normally Closed Screwed End
Body Material SS304 (ASTM A351 Grade CF8)
Pressure Range 0.5 to 12 kg/cm2 (bar)
Temperature (Media) -30° C to 90° C
Seal Nitrile (NBR)
Media Suitable for Air, Water, Chemical, Gas
Other Specification / Data Check the tabs given below for details
View PDF

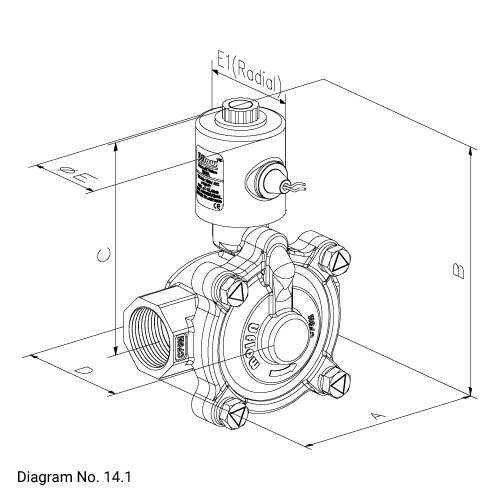

Model No. Port Size Diagram No A B C D E E1
PCN68 1.1/2" 14.1 108 172 116 88 48 57
