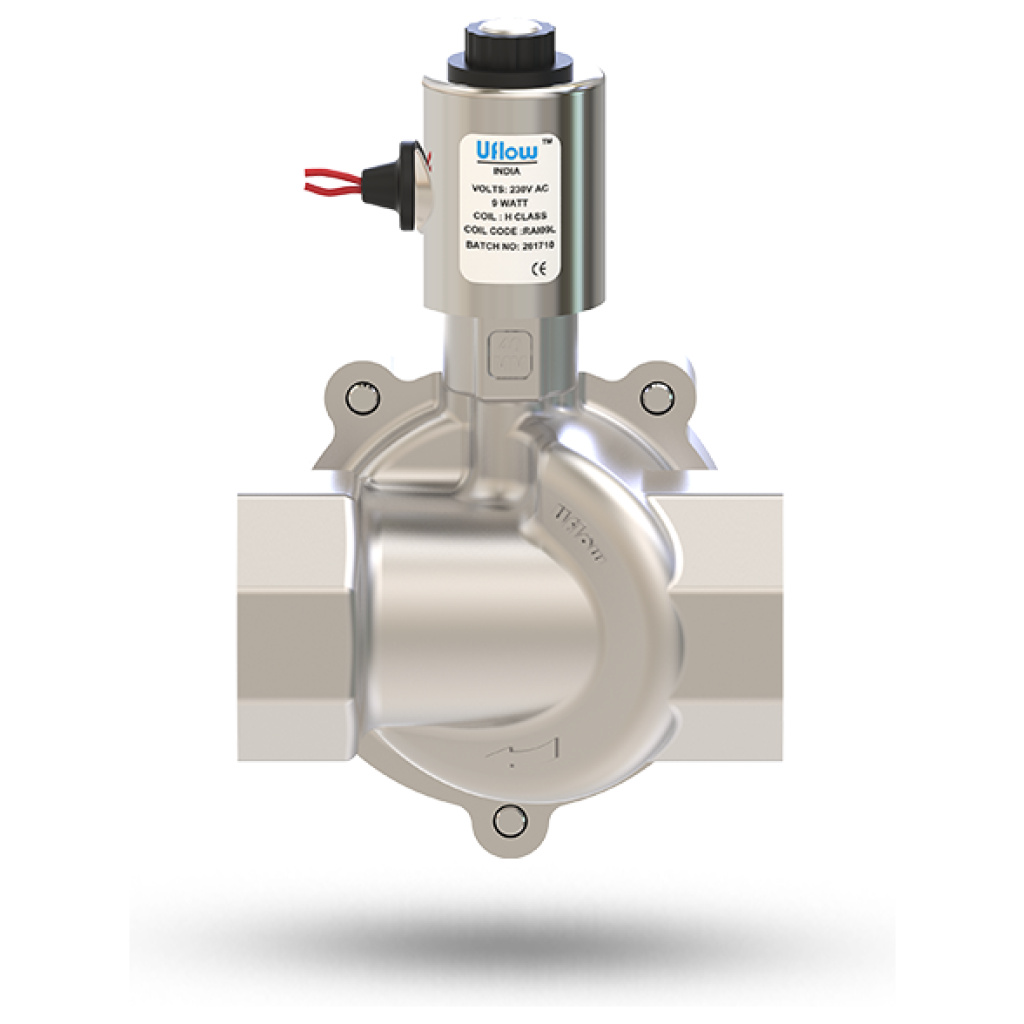

Uflow 1.1/2 Inch 2/2 Way High Pressure Water Solenoid Valve - Pilot Operated Piston Type Solenoid Valve for Water SS304 with Metallic Round Coil - Screwed Ends

Uflow 1.1/2 Inch 2/2 Way High Pressure Water Solenoid Valve - Pilot Operated Piston Type Solenoid Valve for Water SS304 with Metallic Round Coil - Screwed Ends

Brand UFLOW

₹ 7874 (Incl. of all taxes)

₹ 6673 + ₹ 1201 GST

MRP ₹9842

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	2.3 KG

PORT

Refer technical data sheet (Available in BSP threading)

END CONNECTION

Screwed

BODY MATERIAL

SS ASTM A351 Grade CF8

SEAL & O RING
MEDIA TEMP.

PTFE + Silicon / Viton

-10° C to 180° C

CIRCUMSTANCE TEMP.

-10° C to 70° C

MEDIA

Especially for Water Application - High Pressure, Steam, Hot Water, Hot Fluid, Hot Oil

MAIN FEATURES

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment

OPERATING VOLTAGE
POWER CONSUMPTION

24AC	110AC	230AC	12DC	24DC
7W	8W	8W/15W	10W	11W

COIL FEATURES

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

OTHER COIL TYPES

Metallic Round Coil with Lead Wire, Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil

OPTIONAL FEATURE

90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.

OTHER SPECIFICATION DATA

Available on Request

NOTE: Use of filter in the inlet port is recommended.

Model No.	HCP6A
Body Material	CF8 (SS304)
Pipe Size (Inch)	1.1/2"
Orifice (mm)	36
Min. Operating Pressure (kg/cm²)	4
Max. Operating Pressure (kg/cm²)	45
Seal & Diaphragm Material	PTFE
Flow Factor Kv (m³/hr)	23

* Note – Body Material : CF8M (SS316) on request

Size	1.1/2"BSP
Coil Type	Metallic Round Coil with Lead Wire
Valve Type	2/2 way Normally Closed High Pressure Water Solenoid Valve
Body Material	SS304 (ASTM A351 Grade CF8)
Pressure Range	4 to 45 kg/cm2 (bar)
Temperature (Media)	-10° C to 180° C
Seal	PTFE + Sp. VITON
Media	Best suitable for Water Application
Other Specification / Data	Check the tabs given below for details
