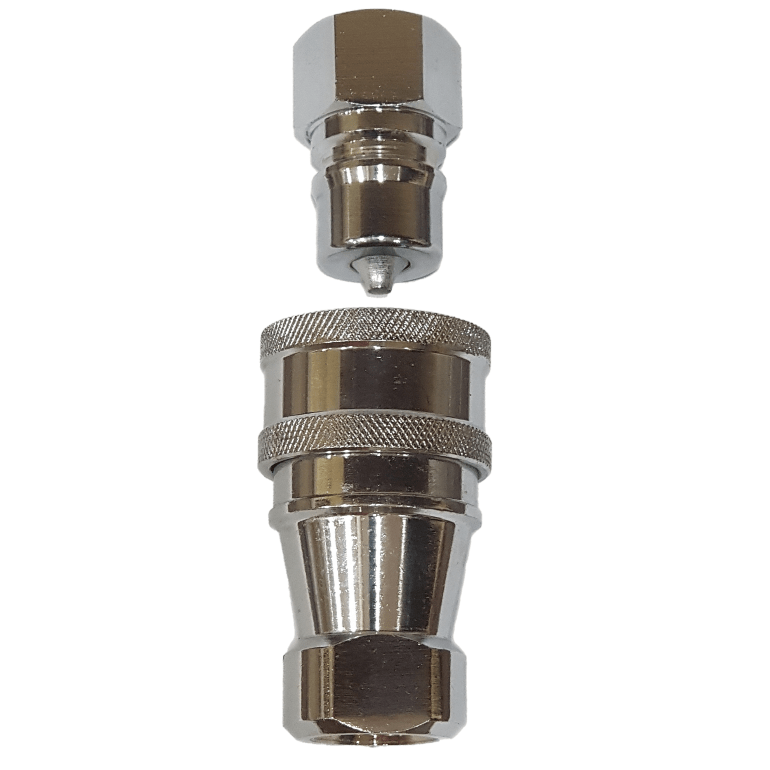

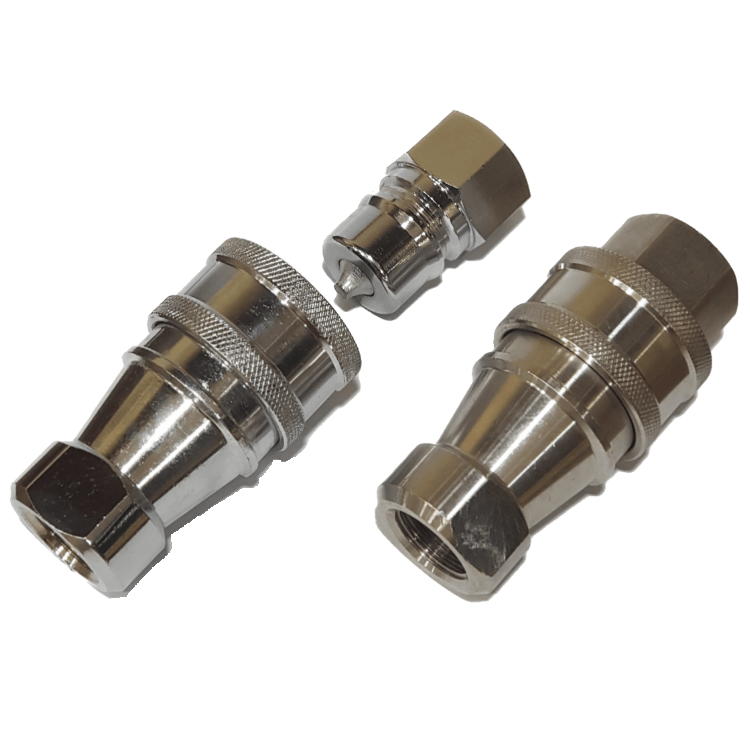

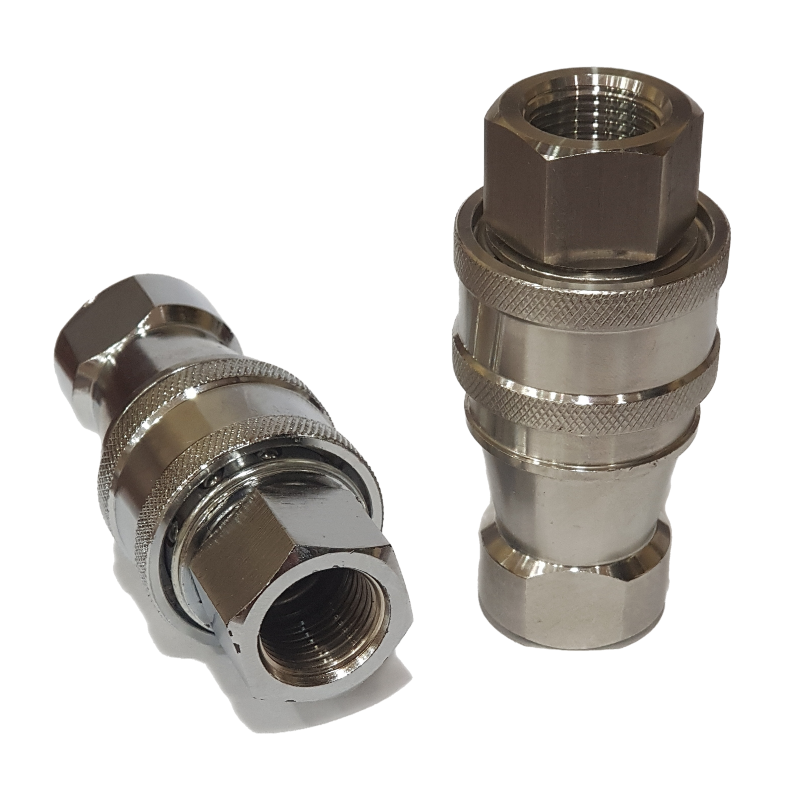

Quick Release Coupling Double Check Valve - Double Shut Off Valve Hydraulic QRC - MS Body Quick Coupler - Size 1"

Quick Release Coupling Double Check Valve - Double Shut Off Valve Hydraulic QRC - MS Body Quick Coupler - Size 1"

Brand AMFIT

₹ 1080 (Incl. of all taxes)

₹ 915 + ₹ 165 GST

MRP ₹1440

Select Options:

MS-1/4"

MS-3/8"

MS-1/2"

MS-3/4"

MS-1"

MS-1.1/4"

MS-1.1/2"

MS-2"

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1 KG

Port	Refer technical data sheet (Available in BSP threading)
End Connection	Screwed (Female Threaded)
Body Material	Mild Steel surface treated chromium plated
Spring	Spring steel as per IS Standard
Balls	MS Chromed
Seal	NBR (Nitrile Rubber)
Media Temperature	- 25 deg C to + 100 deg C
Construction	Quick Coupling with double check valve (one at coupler end & other at adaptor end)
Advantages	Fast, Leak proof instant connections, without tools, without threading or twisting, without strains, without sweat. Hence time saving

Model No.	Nominal Size (mm)	Nominal Size (Inch)	Max. Working Pressure (PSI)
MSDC-100	25	1"	2000

Size	1" BSP
Locking System	Ball Bearing with manual sleeve
Valve	Poppet Type Shut-Off system (Double Check Valve)
Surface Treatment	Chrome plated, provides excellent resistance to corrosion in most conditions
Engagement	Smooth connection and release of plug and socket makes it convenient to use
Working	Flow expedites automatically when coupled
Body & Ball	Mild Steel (MS) Chromed
Seal Material	Nitrile (Double Seal for strong gripping in pressure)
