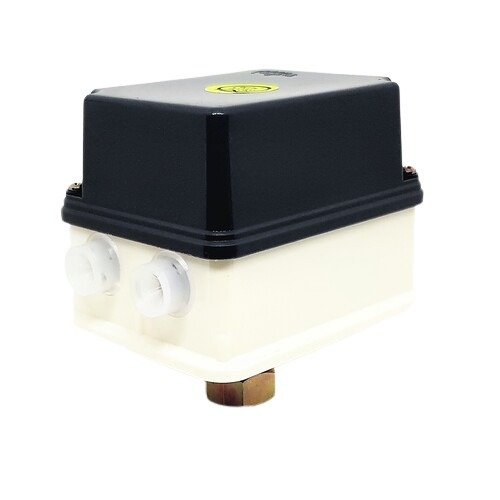

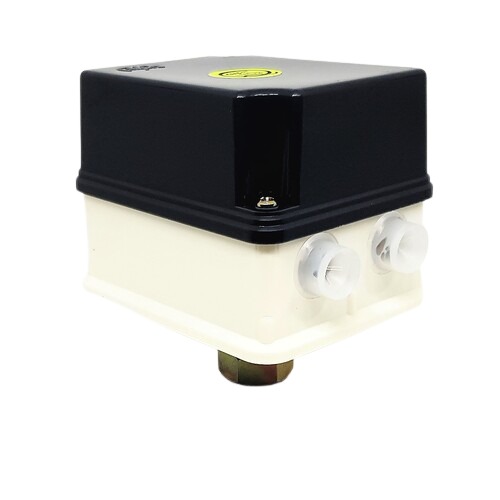

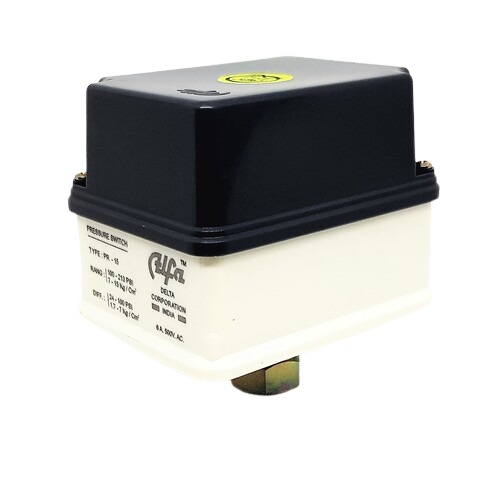

Alfa Pressure Switch 2.5-9.5 Bar PR-9, Auto Cut-Off Switch for Air & Water

Brand Alfa

₹ 732 (Incl. of all taxes)

₹ 620 + ₹ 112 GST

MRP ₹915

Select Options:

Basic

With Knob

With Valve

Both

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.85 KG

Item	Pressure Switch (Triple Pole)
Construction	Bakelite contact block made of superior grid of phenol formaldehyde powder for very good electrical and mechanical properties
Suitability	Ideally Suited for Air Compressors
Application	To automatically start and stop motors of compressor & pressurized water
Operation	Smooth and Trouble Free with exceptionally long life
Pressure range*	A wide range of differential pressure setting available between starting and stopping pressures
Cut out pressure	2.5 up to 9.5 Kg/Cm²
Minimum Differential	1.2 up to 1.8 Kg/Cm²
Maximum Differential	7 Kg/Cm²

*Refer the Technical Data Below

Model	Cut out Pressure Range	Minimum Differential	Maximum Differential	Temperature	Connection	Medium	On/Off Knob	Unloading Valve

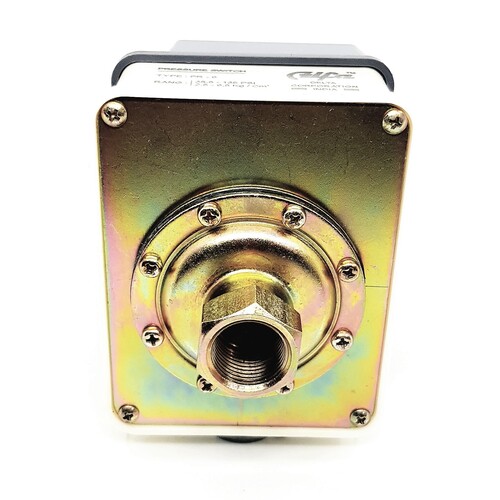

PR-9	2.5-9.5 (Kg/Cm²) / 35.5-135 (PSI)	1.2-1.8 (Kg/Cm²) / 17-26 (PSI)	7 (Kg/Cm²) / 100 (PSI)	211 F / 100deg C	1/2" B.S.P.	Air & Water	No	No

Item	Pressure Switch - Suited for Air Compressors
Application	For automatically starting & stopping motors of air compressor and Pressurized water plants
Operation	Smooth and Trouble free with exceptionally long life
Cut-out Pressure Range	2.5-9.5 (Kg/Cm²) / 35.5-135 (PSI)
Minimum Differential	1.2-1.8 (Kg/Cm²) / 17-26 (PSI)
Maximum Differential	7 (Kg/Cm²) / 100 (PSI)
