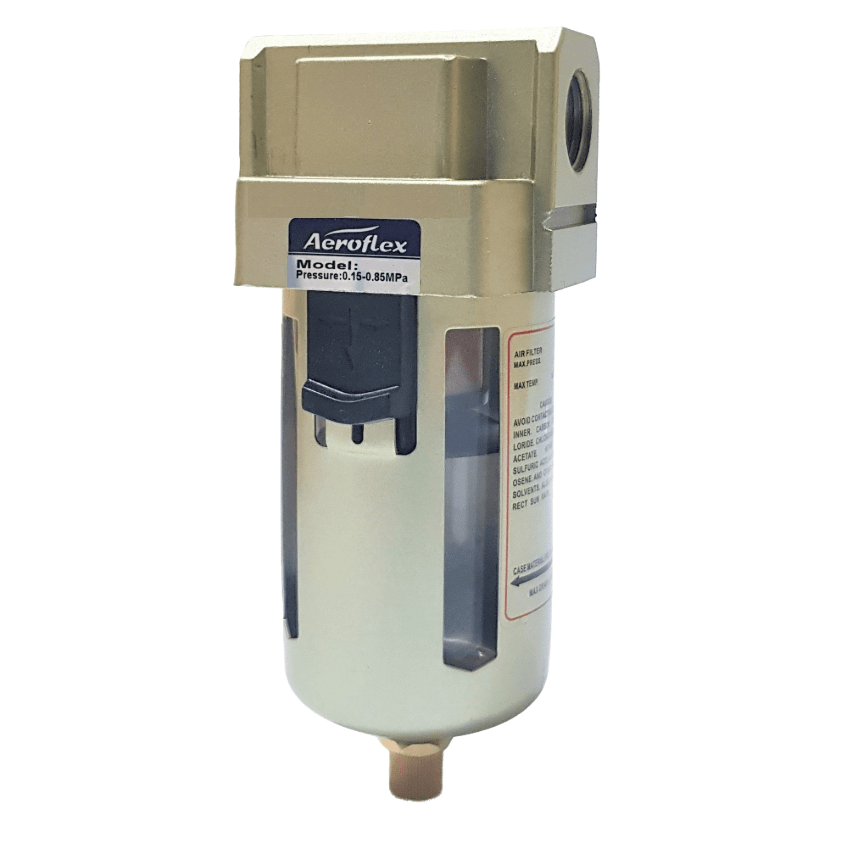

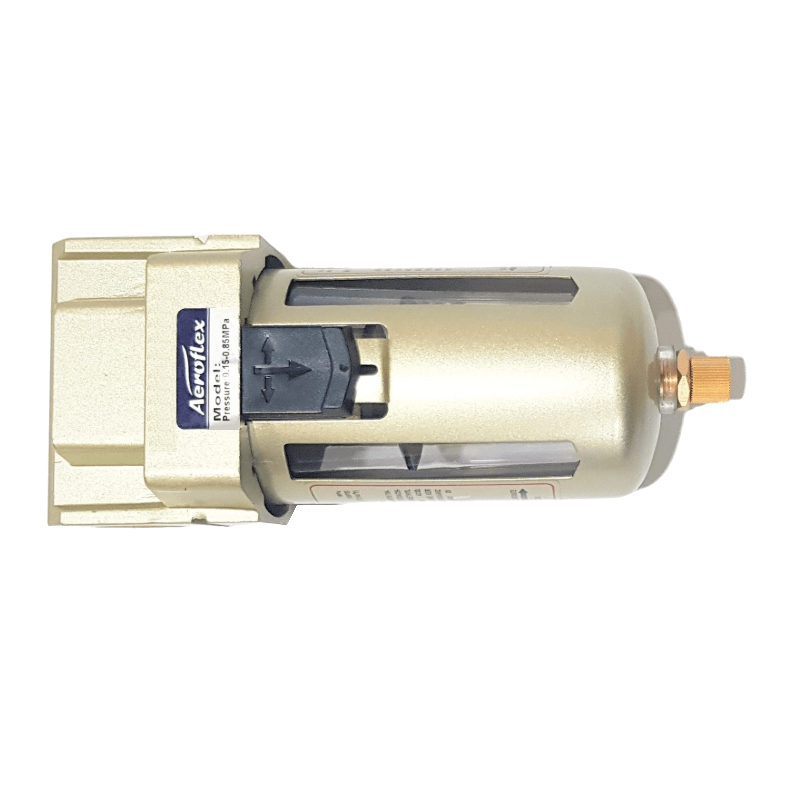

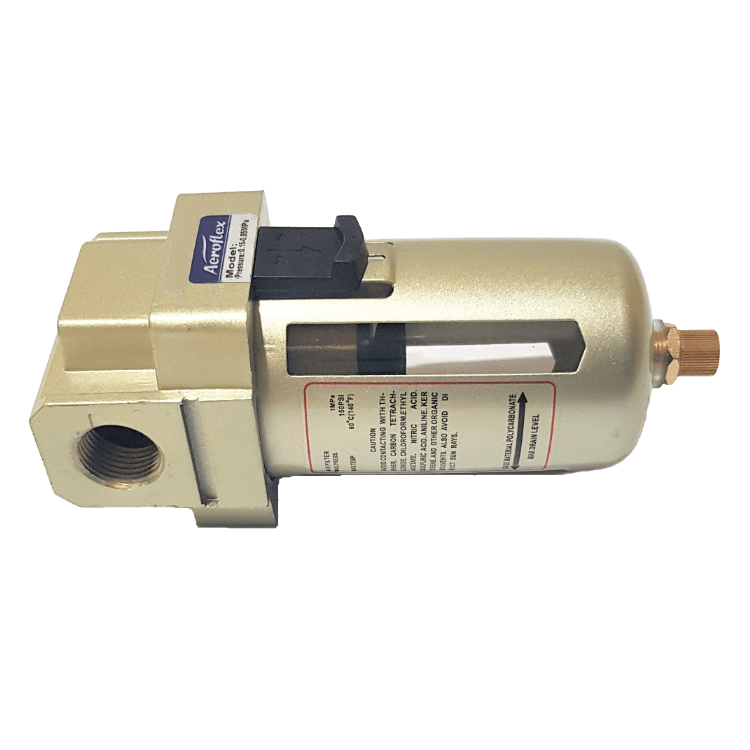

Aeroflex 3/4 Inch Pneumatic Filter Unit F-06 - Air Filter Unit with Metal Guard

₹ 885 (Incl. of all taxes)

₹ 750 + ₹ 135 GST

MRP ₹1180

Select Options:

F-1/4"

F-1/4"G

F-3/8"G

F-1/2"G

F-3/4"G

F-1"G

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.75 KG

Function	Modular Filter Regulator Combination Unit
End Connection	Screwed
Body Material	Aluminium Die Cast
Valve Assembly & Seal	Brass, NBR
Filter Element	Bronze
Bowl Assembly	Polycarbonate With Metal Bowl Guard
Media	Air
Max. Operating Pressure	10 Bar
Relief Pressure	Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
Working Pressure	0.5 to 8.5 Bar
Proof Pressure	15 Bar
Regulator Construction	Relieving Type
Drain Function	Differential Drain

Model	Port Size	Bowl Guard	Fluid	Temperature	Filtration Rating	Working Pressure Range	Max. Flow Rate Nl/Min
F-06	3/4" BSP	Metal	Air	5 to 60deg C	40 µm	0.5 to 8.5 Bar	6000

Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.
