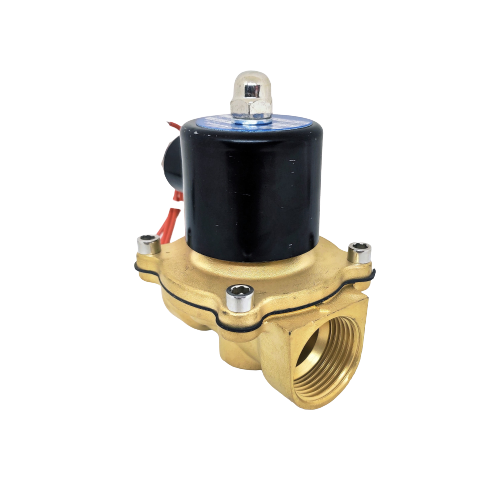

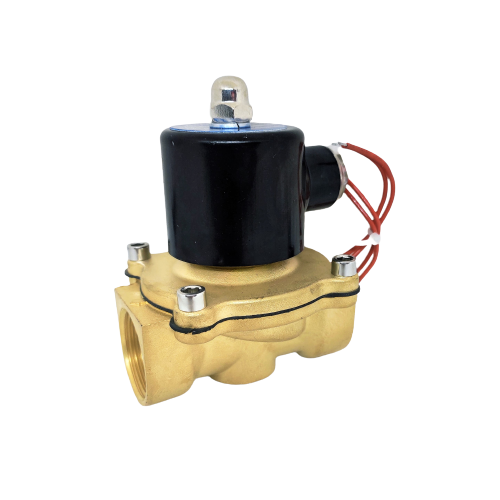

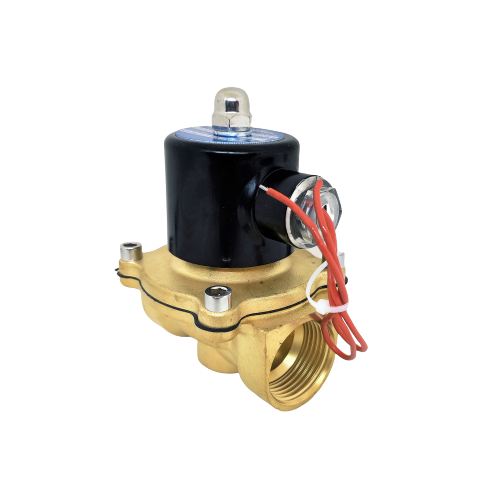

Aeroflex 3/4 Inch 2/2 Way 24V DC Normally Close Diaphragm Solenoid Valve Brass Finish - 20-2WZ

Aeroflex 3/4 Inch 2/2 Way 24V DC Normally Close Diaphragm Solenoid Valve Brass Finish - 20-2WZ

₹ 1257 (Incl. of all taxes)

₹ 1065 + ₹ 192 GST

MRP ₹1676

Select Options:

230v AC

24v DC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.9 KG

Port

Refer technical data sheet (Available in BSP threading)

End Connection

Screwed

Body Material

Brass Finish Alloy

Diaphragm

Nitrile (NBR)

-5° C to 90° C

Media Temp.

Media

Air, Water, Chemical, Gas

Operating Voltage

230AC & 24DC

Coil Features

Easy coil change or freely movable in between as require

Other Specification Data

Available on Request

NOTE: Use of filter in the inlet port is recommended.

Model No.	Body Material	Pipe (Inch)	Orifice (mm)	Min. Operating Pressure Kg/cm²	Max. Operating Pressure Kg/cm²	Seal & Diaphragm Material
20-2WZ	Brass Finish Alloy	3/4"BSP	20	0	10	NBR

* Note - Working Pressure varies with size and media

Size	3/4"BSP
Coil Type	Metallic Casing Round Coil with Wire
Valve Type	2/2 way Normally Closed Screwed End
Body Material	Brass Finish Alloy
Pressure Range	0 to 10 kg/cm2 (bar)
Temperature (Media)	-5° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Chemical, Gas
Other Specification / Data	Check the tabs given below for details
