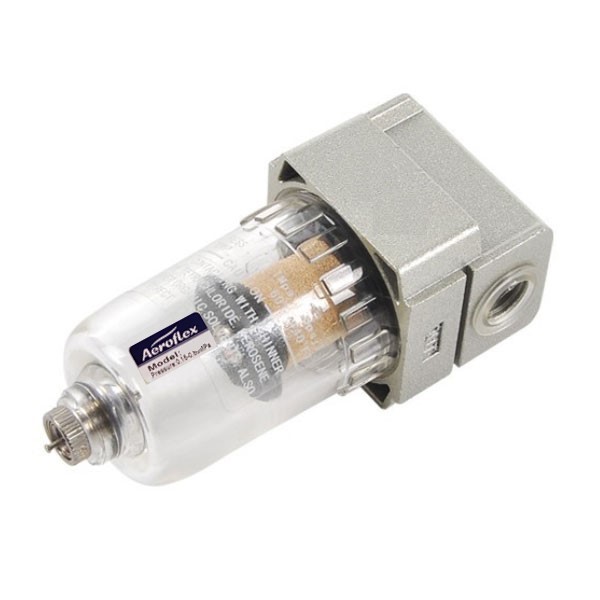

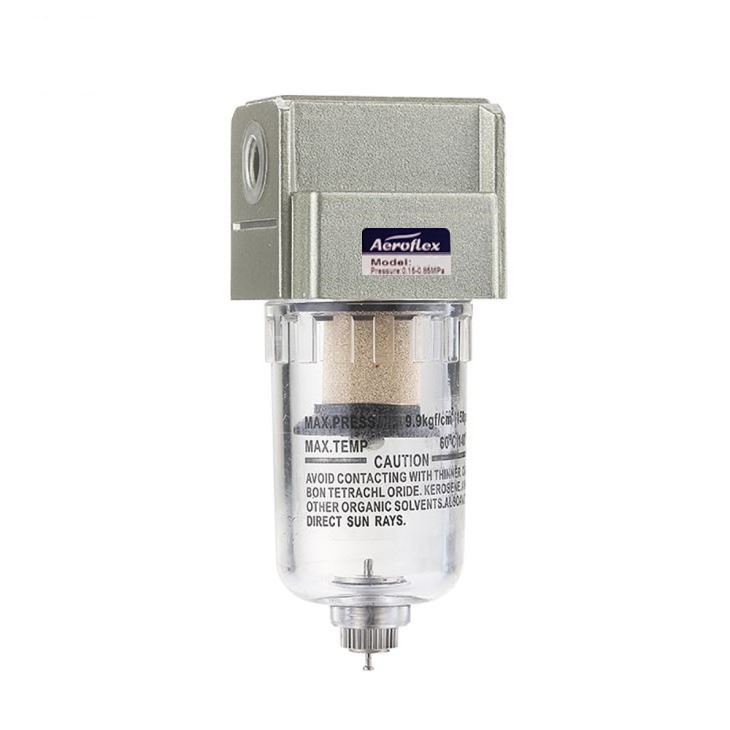

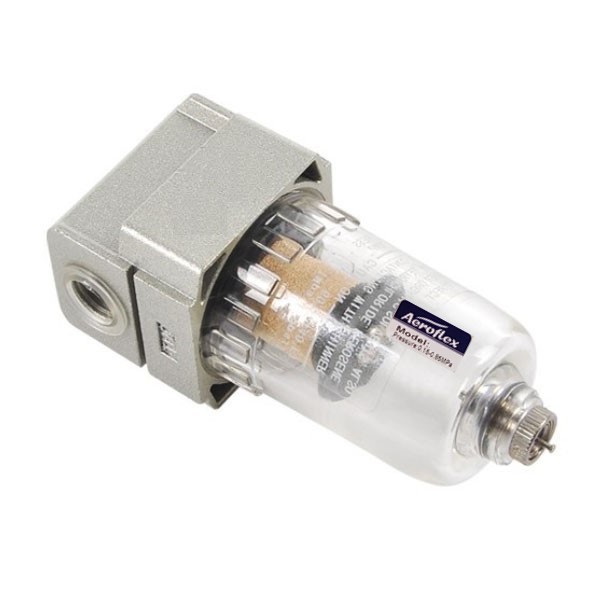

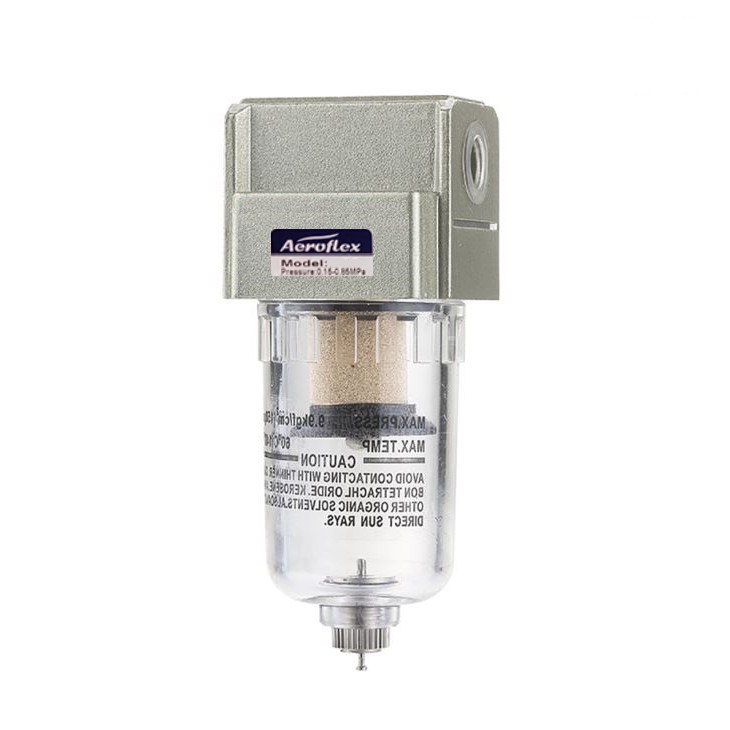

Aeroflex 1/4 Inch Pneumatic Filter Unit F-02 - Air Filter Unit

Brand AEROFLEX
₹ 398 (Incl. of all taxes)
₹ 337 + ₹ 61 GST
MRP ₹531
F-1/4"
F-1/4"G
F-3/8"G
F-1/2"G
F-3/4"G
F-1"G
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 0.2 KG
Function Modular Air Filter Unit
End Connection Screwed
Body Material Aluminium Die Cast
Valve Assembly & Seal Brass, NBR
Filter Element Bronze
Bowl Assembly Polycarbonate Bowl
Media Air
Max. Operating Pressure 10 Bar
Working Pressure 0.5 to 8.5 Bar
Proof Pressure 15 Bar
Drain Function Differential Drain
Model Port Size Bowl Guard Fluid Temperature Filtration Rating Working Pressure Range Max. Flow Rate Nl/Min
F-02 1/4" BSP NA Air 5 to 60deg C 40 µm 0.5 to 8.5 Bar 750
Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.
Function Modular Air Filter Unit
End Connection Screwed
Body Material Aluminium Die Cast
Max. Operating Pressure 10 Bar
Working Pressure 0.5 to 8.5 Bar
Proof Pressure 15 Bar
View PDF
Port A B C D P
1/4" 40 97.5 11 40 40
