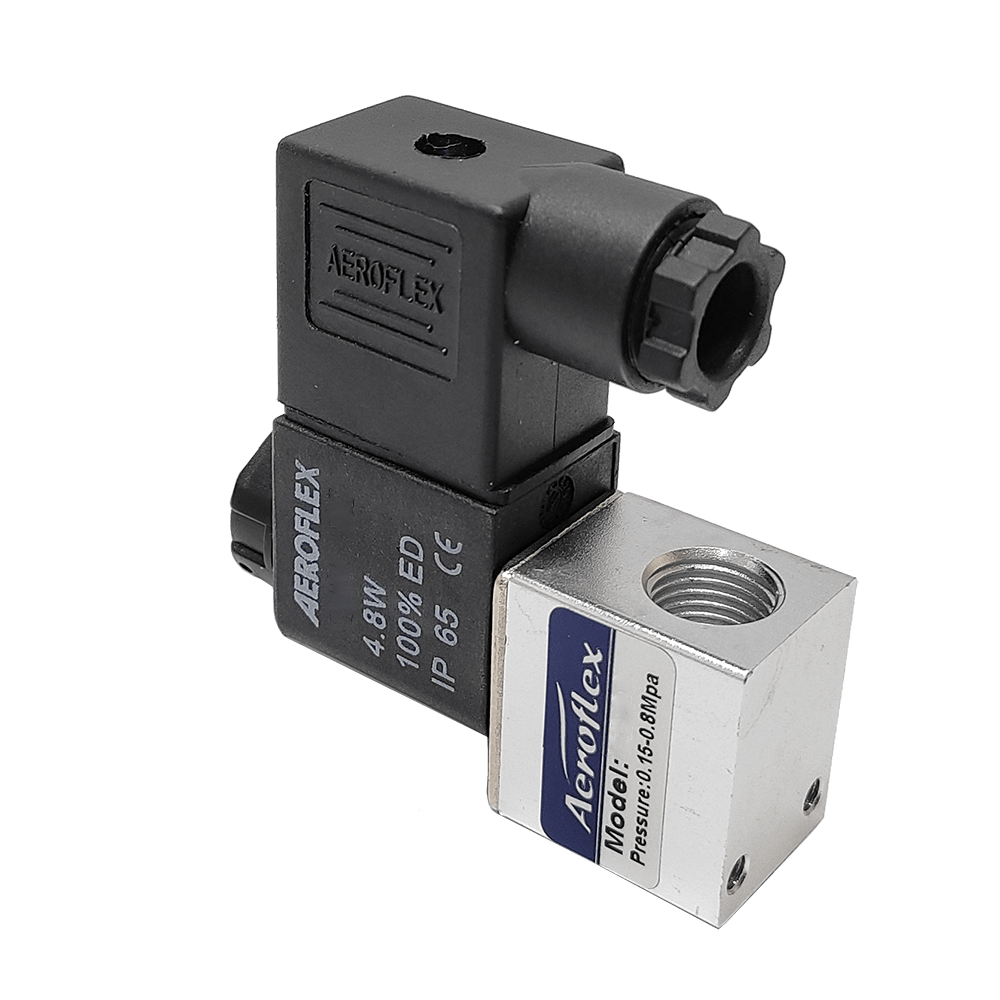

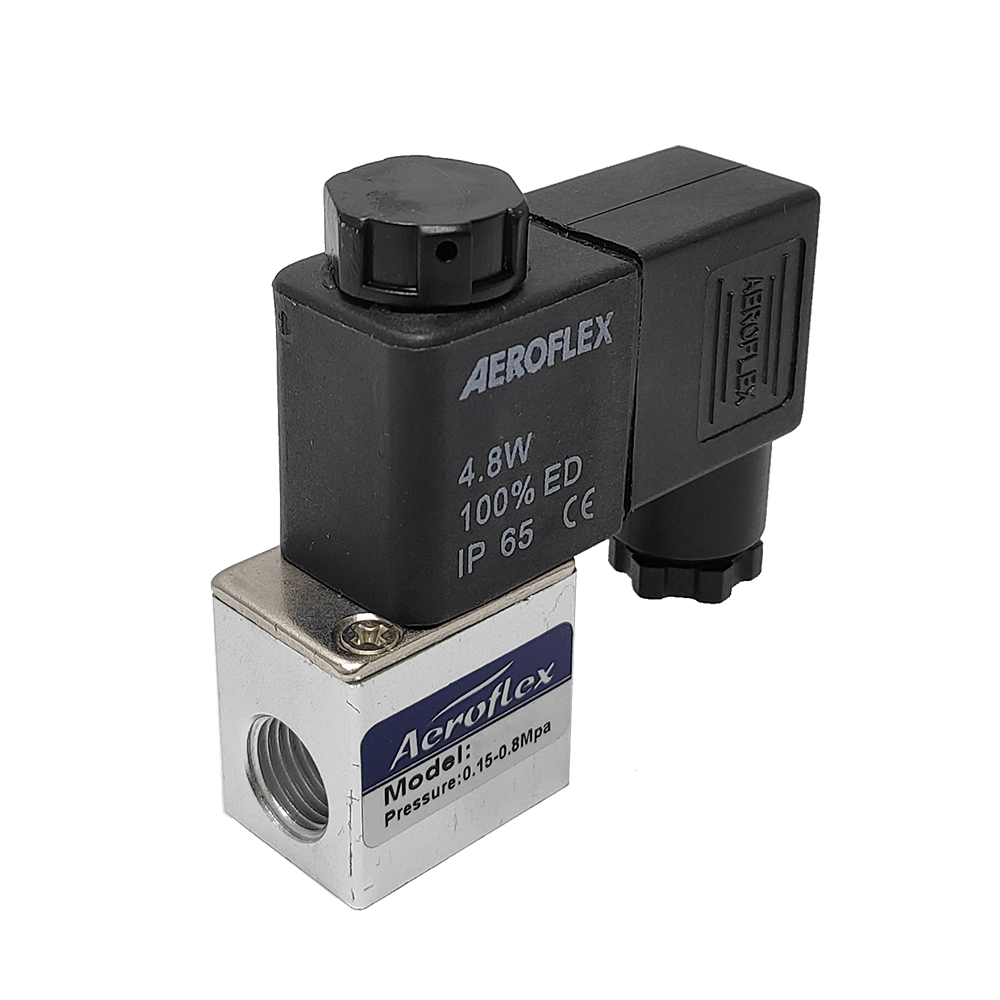

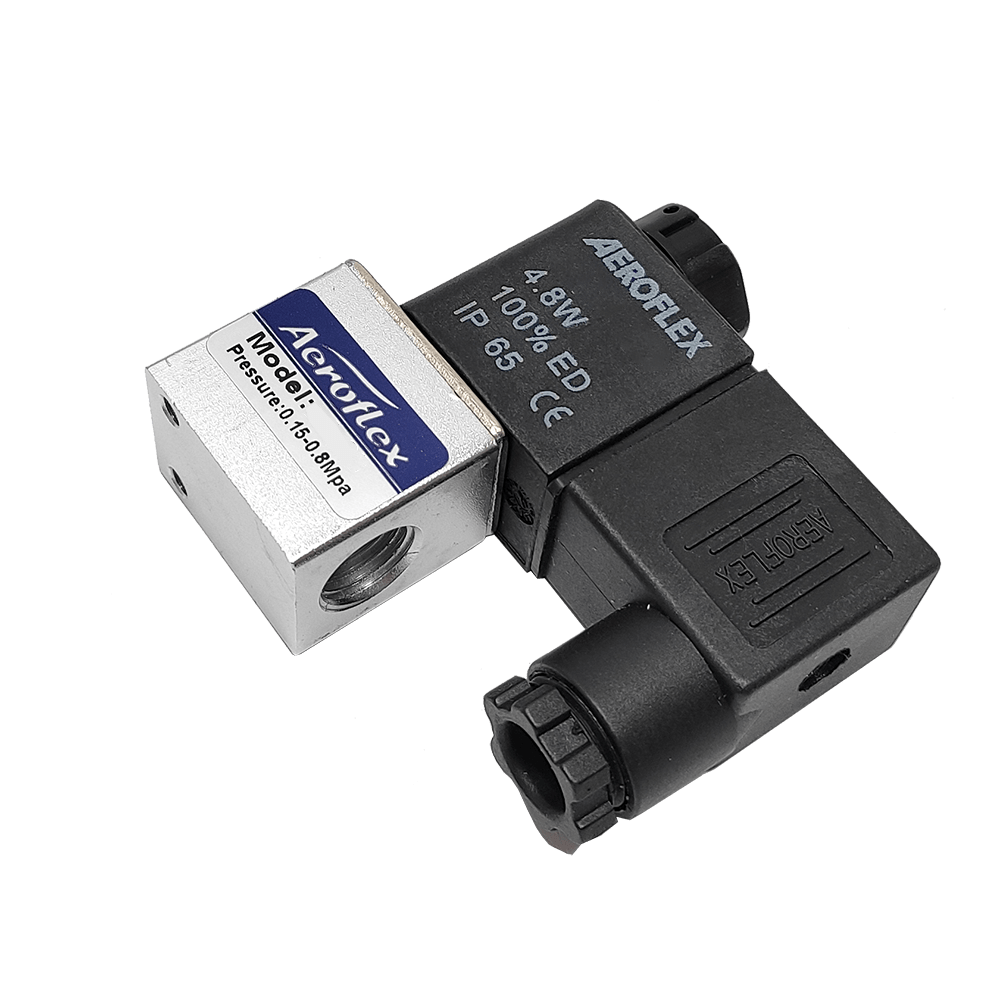

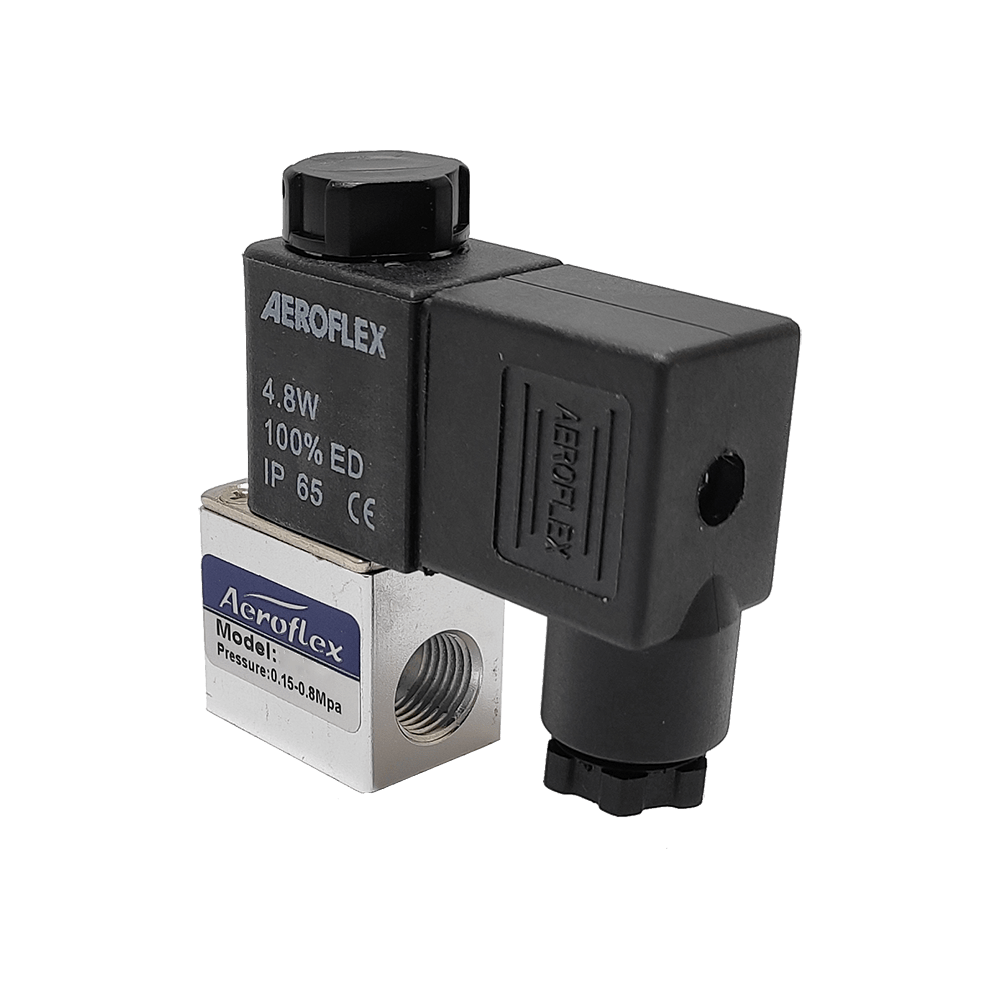

Aeroflex 1/4 Inch 2/2 Way 24V AC Single Solenoid Valve with Spring Return - V2-08 Pneumatic Solenoid Valve 1/4" x 2/2 in 24V AC

Aeroflex 1/4 Inch 2/2 Way 24V AC Single Solenoid Valve with Spring Return - V2-08 Pneumatic Solenoid Valve 1/4" x 2/2 in 24V AC

₹ 510 (Incl. of all taxes)

₹ 432 + ₹ 78 GST

MRP ₹680

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	0.2 KG

Function	Solenoid Valve with Spring Return
Design	Compact Body Spool Operated (Direct Drive Motion)
Type	2 Port 2 Position (2/2 Way)
Coil Actuation	Single Solenoid Coil
End Connection	Screwed Ends
Port Size	Available in 1/4" (Refer Technical Data)
Voltage	All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media	Filtered Air
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminium Alloy
Seal	NBR
Temperature	5°C TO 50°C

Model	In Port Size	Out Port Size	Fluid	Temperature	Seal	Working Pressure	Frequency	Shortest Excitation Time
V2-08	1/4" BSP	1/4" BSP	Air	5° to 50°C	NBR	0.15 to 0.8 MPa	Max.10 Cycles / Second	0.05s

Item Name	Solenoid Valve with Spring Return
Design	Compact Body Spool Operated (Direct Drive Motion)
Type	2 Port 2 Position (2/2 Way)
Coil Actuation	Single Solenoid Coil Actuation
End Connection	Screwed Ends
Body Material	Aluminium Alloy
Working Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
