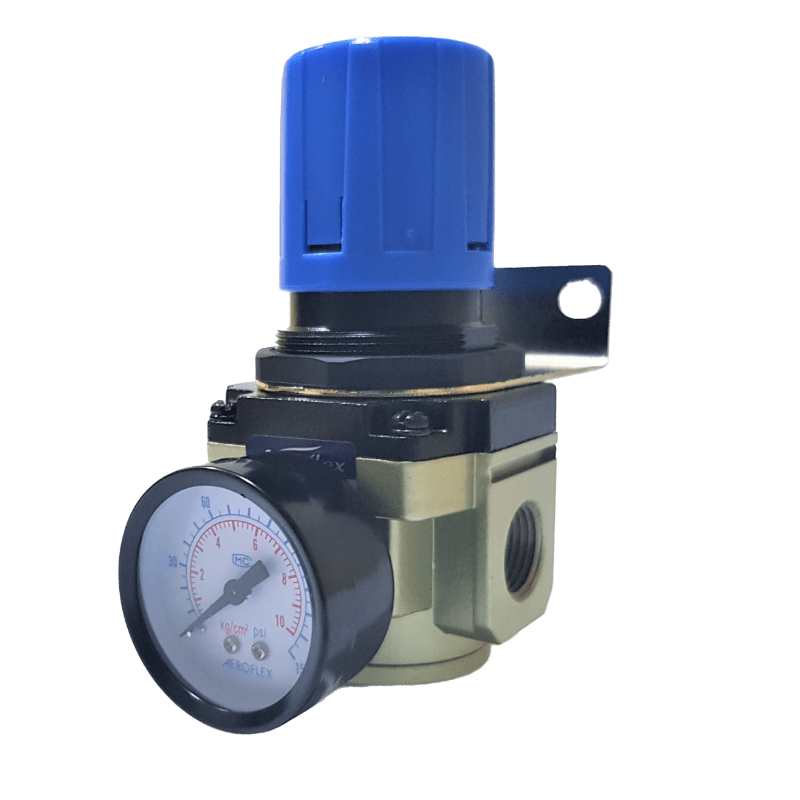

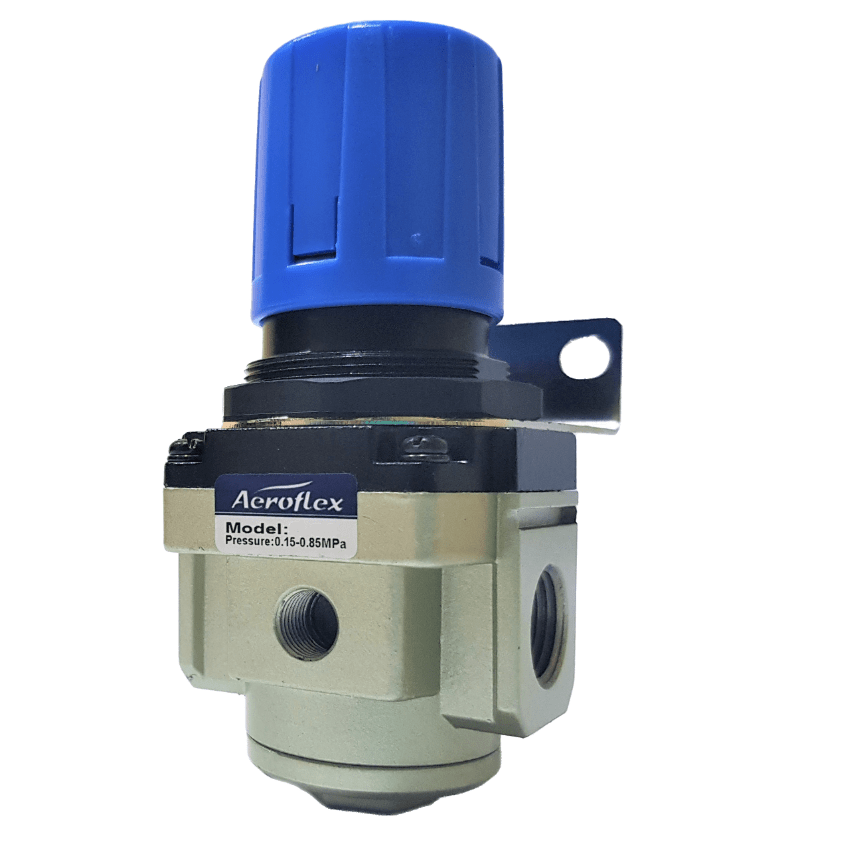

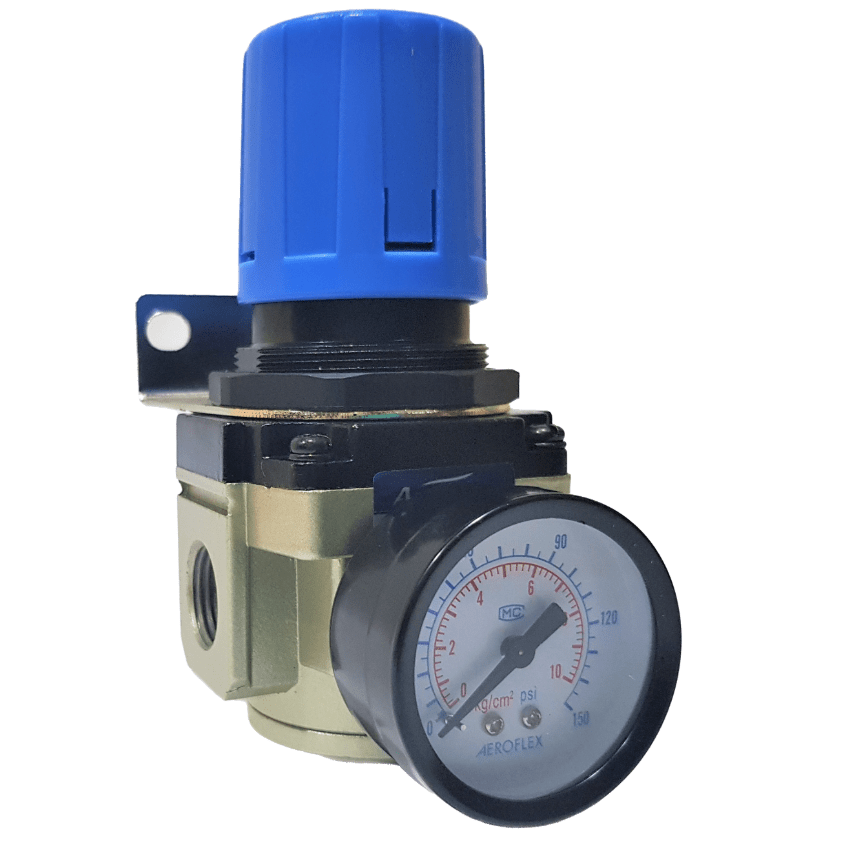

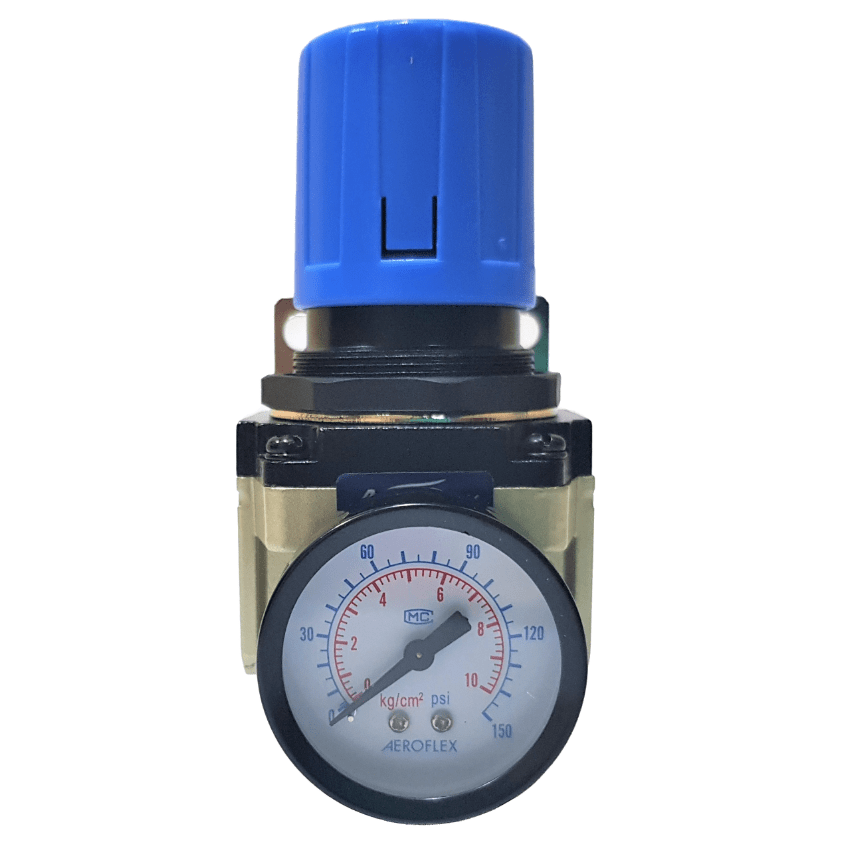

Aeroflex 1/2 Inch Pneumatic Regulator Unit R-04 - Air Regulator Unit

Brand AEROFLEX
₹ 1217 (Incl. of all taxes)
₹ 1031 + ₹ 186 GST
MRP ₹1623
R-1/4"
R-3/8"
R-1/2"
R-3/4"
R-1"
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 0.95 KG
Function Modular Air Regulator Unit
End Connection Screwed
Body Material Aluminium Die Cast
Valve Assembly & Seal Brass, NBR
Media Air
Max. Operating Pressure 10 Bar
Working Pressure 0.5 to 8.5 Bar
Proof Pressure 15 Bar
Regulator Construction Relieving Type
Model Port Size Gauge Port Fluid Temperature Working Pressure Range Max. Flow Rate Nl/Min
R-04 1/2" BSP 1/4" BSP Air 5 to 60deg C 0.5 to 8.5 Bar 6000
Function Modular Air Regulator Unit
End Connection Screwed
Body Material Aluminium Die Cast
Max. Operating Pressure 10 Bar
Relief Pressure Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
Working Pressure 0.5 to 8.5 Bar
Proof Pressure 15 Bar
View PDF

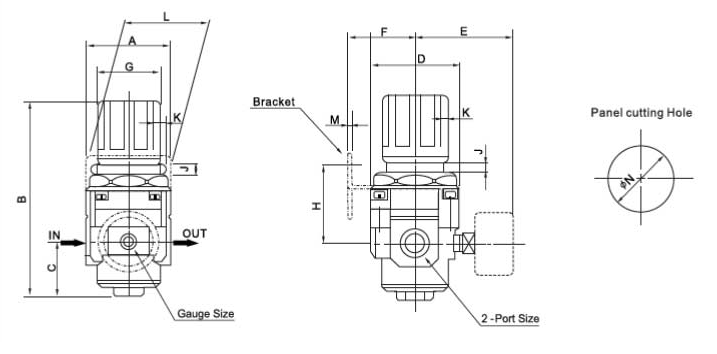

Port A B C D E F G H I J K L M N
1/2" 70 147 37 70 65 50 50 53 1/4" 8 10 70 2.3 52
