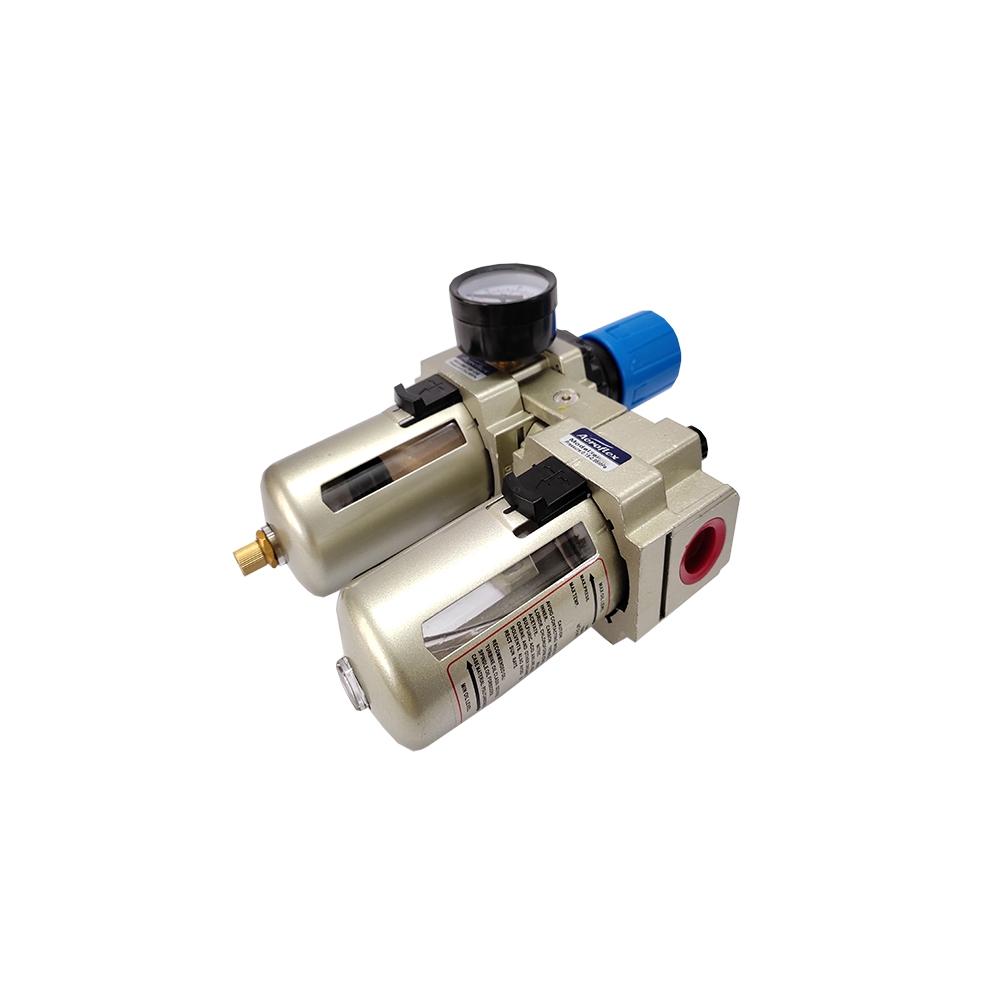

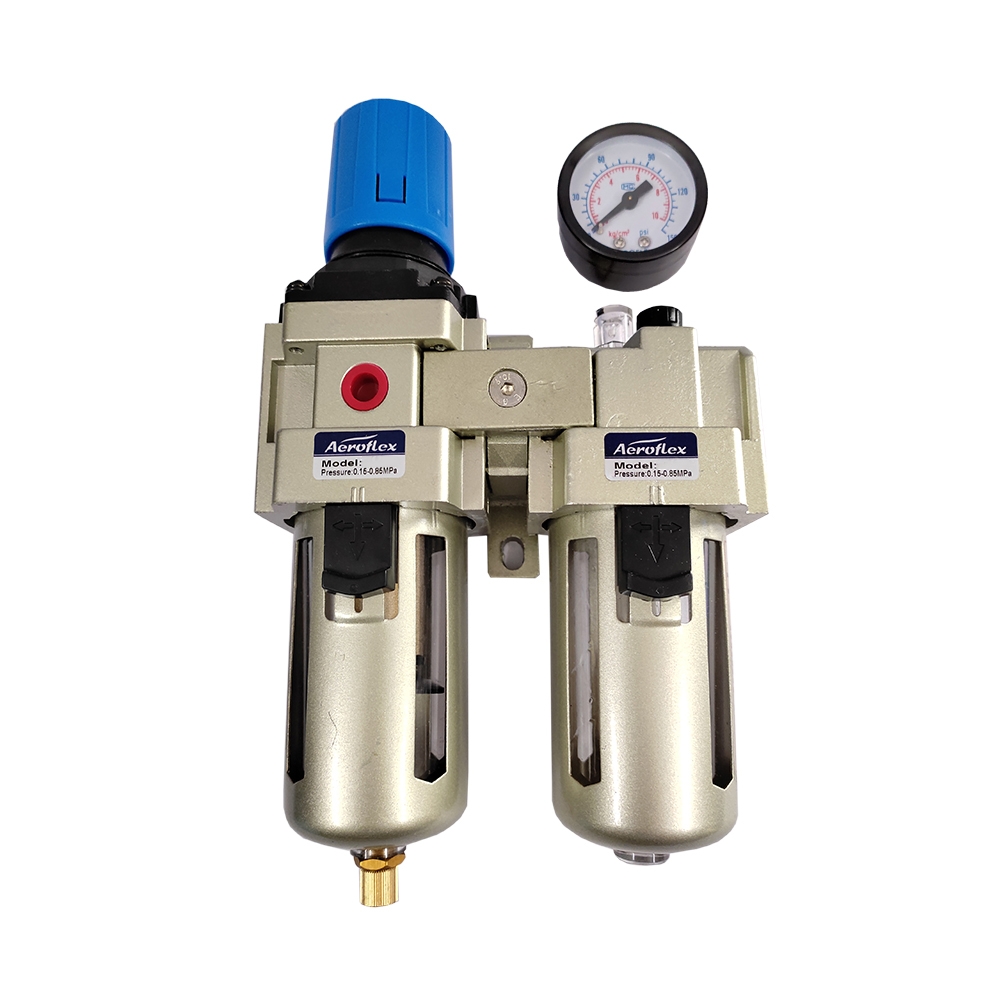

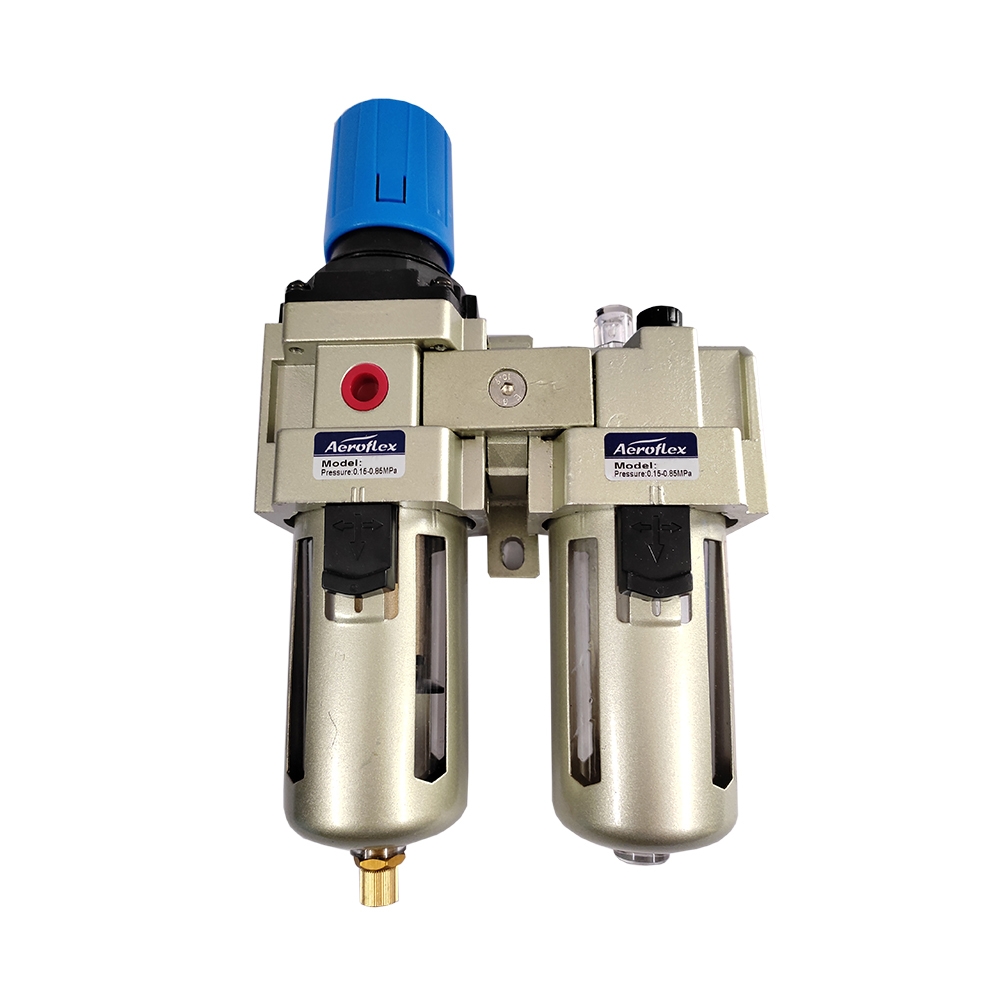

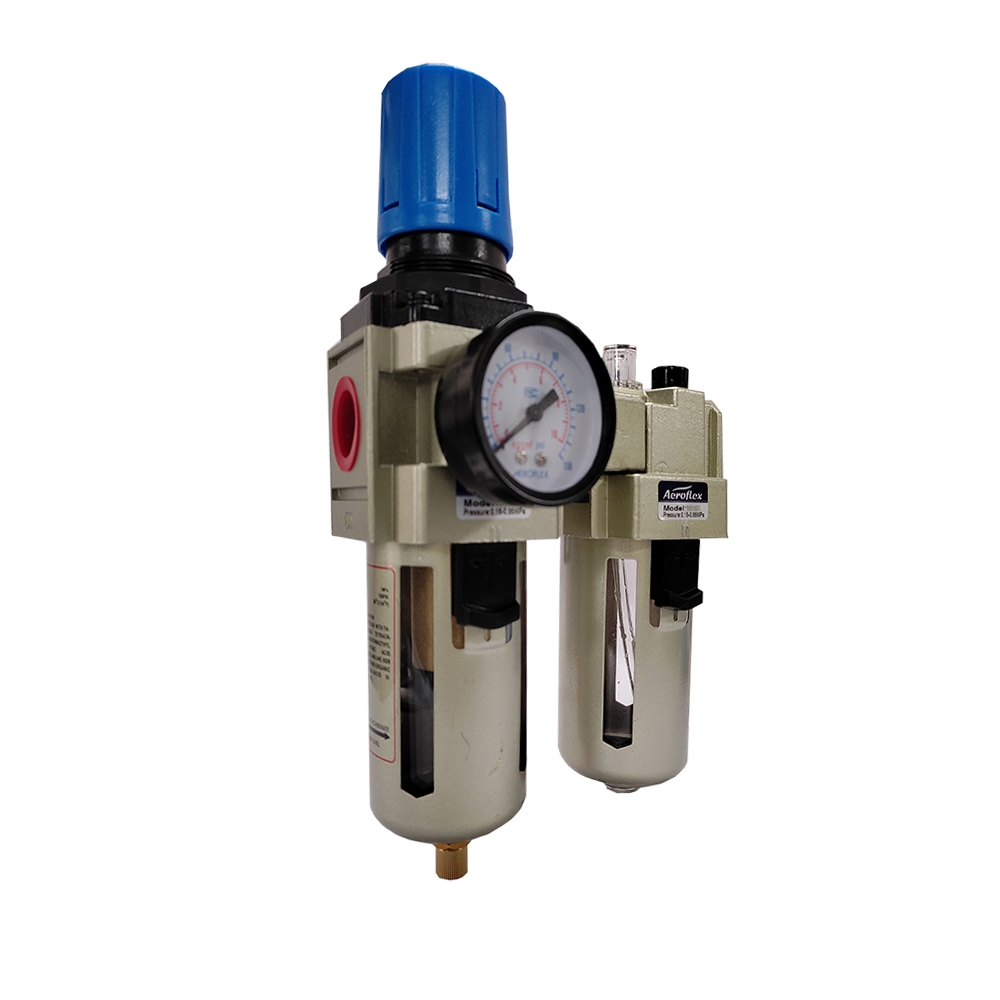

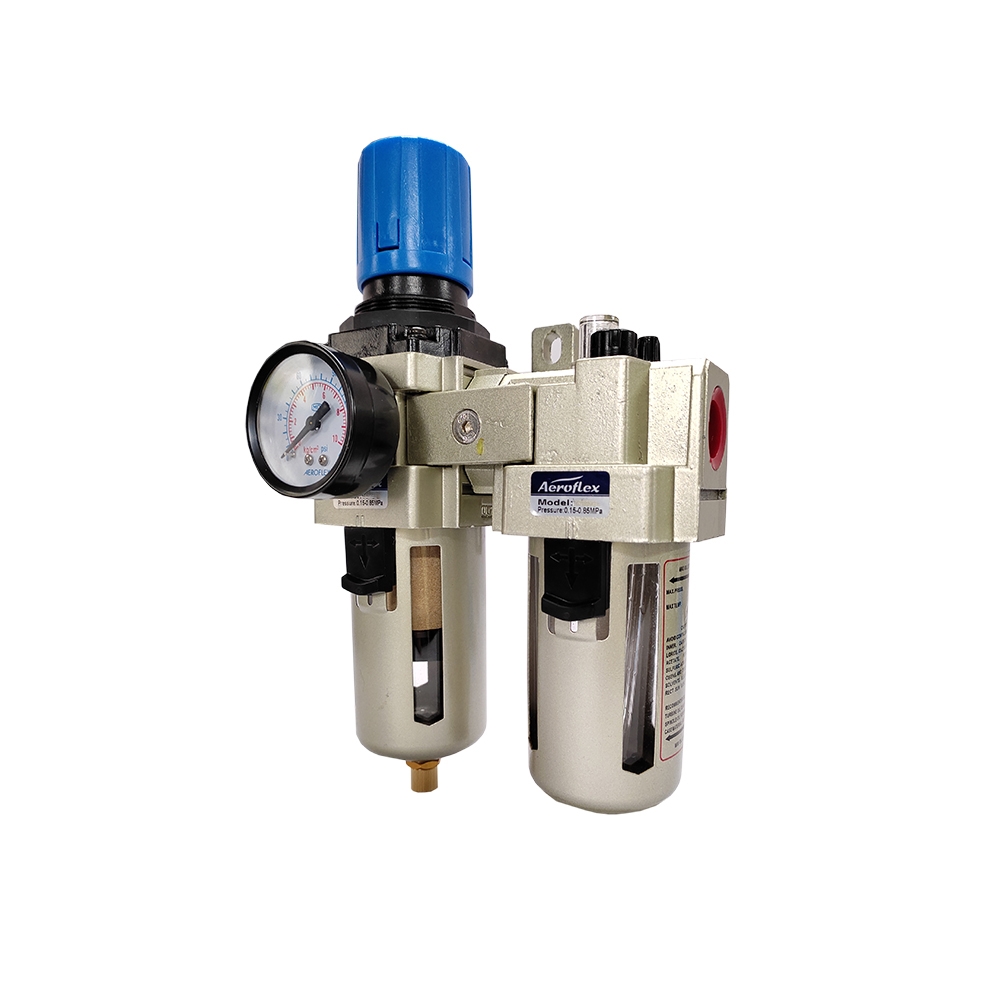

Aeroflex 1/2 Inch Pneumatic FRL Unit 2FRL-04 - Air Filter Regulator and Lubricator Unit with Metal Guard

Aeroflex 1/2 Inch Pneumatic FRL Unit 2FRL-04 - Air Filter Regulator and Lubricator Unit with Metal Guard

₹ 2399 (Incl. of all taxes)

₹ 2033 + ₹ 366 GST

MRP ₹3198

Select Options:

FRL-1/4"

FRL-1/4"G

FRL-3/8"G

FRL-1/2"G

FRL-3/4"G

FRL-1"G

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1.9 KG

Function	Modular Filter Regulator & Lubricator Unit
End Connection	Screwed
Body Material	Aluminium Die Cast
Valve Assembly & Seal	Brass, NBR
Filter Element	Bronze
Bowl Assembly	Polycarbonate With Metal Bowl Guard
Media	Air
Max. Operating Pressure	10 Bar
Relief Pressure	Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
Working Pressure	0.5 to 8.5 Bar
Proof Pressure	15 Bar
Regulator Construction	Relieving Type
Recommended Lubricant	Class 1 Turbine Oil (ISO VG32)

Model	Port Size	Gauge Port	Fluid	Temperature	Filtration Rating	Working Pressure Range	Max. Flow Rate Nl/Min
2FRL-04	1/4" BSP	1/4"	Air	5 to 60deg C	40 µm	0.5 to 8.5 Bar	3000

Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.

Function	Modular Filter Regulator & Lubricator Unit
End Connection	Screwed
Body Material	Aluminium Die Cast
Max. Operating Pressure	10 Bar
Relief Pressure	Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
Working Pressure	0.5 to 8.5 Bar
Proof Pressure	15 Bar
