Uflow Solenoid Coil 14mm IP-67 Flame Proof 230v AC / 24v DC / 110v AC
₹2,235.00 – ₹2,345.00 (-20%)
Features:
- Coil Type : Metallic Round Coil with LED Din Connector
- Coil Housing : Metallic Round Shape
- Coil Connection : 1/2″NPT Female Connection
- Coil Bore : 14mm
- Coil Class : Flame Proof IP-67
- Certificate : Flame Proof Coils conforming as per Is/IEC-60079-1:2007 (Approved by CIMFR)
- License : Flame Proof coils are Licensed under PESO & followed under BIS
- Suitability : Coils are suitable for IIC Atmosphere Condition (Zone 1&2 Gas Group)
- Coil Volatge : 230v AC
- Other Specification / Data : Check the tabs given below for details
Description
| Bore | 14mm | ||||||
|---|---|---|---|---|---|---|---|
| Connection | 1/2″ NPT Female | ||||||
| Housing | Flame Proof IP-67 | ||||||
| Voltage Options |
|
||||||
| POWER CONSUMPTION | |||||||
| COIL FEATURES | High Reliability, Surge Suppressors for High Wattage Coils, Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||||
| COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||||
| OPTIONAL FEATURE | 90% Power saver and Latching Coil series also available | ||||||
| OTHER SPECIFICATION DATA | Available on Request |
NOTE1: Please check coils compatibility with valve
Technical Data
| Model No. | Housing | Bore (mm) | Coil Voltage |
|---|---|---|---|
| FAI08H | IP-67 Flame Proof | 14mm | 230v AC |

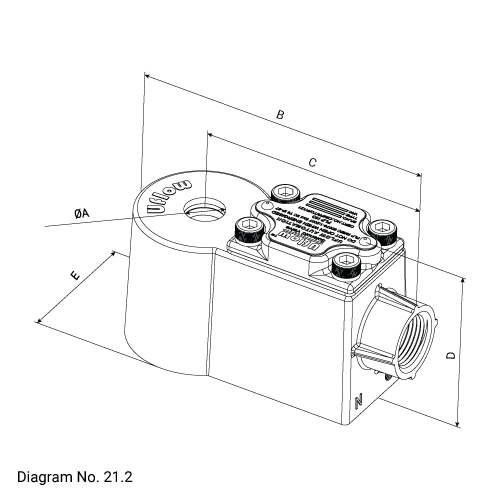

Dimension
| Type | Diagram No. | A | B | C | D | E |
|---|---|---|---|---|---|---|
|
Flame proof Coil Enclosure
|
21.2
|
14.50
|
112
|
86
|
62.50
|
52
|
