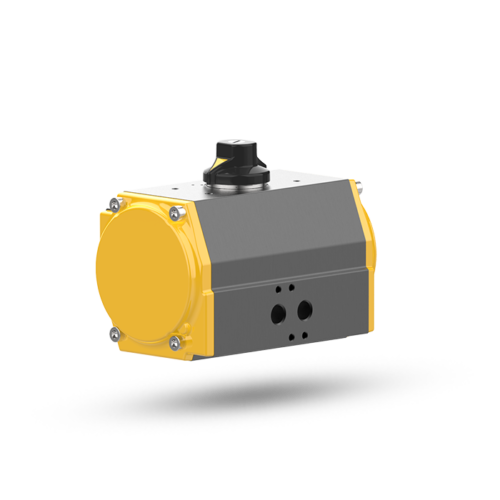

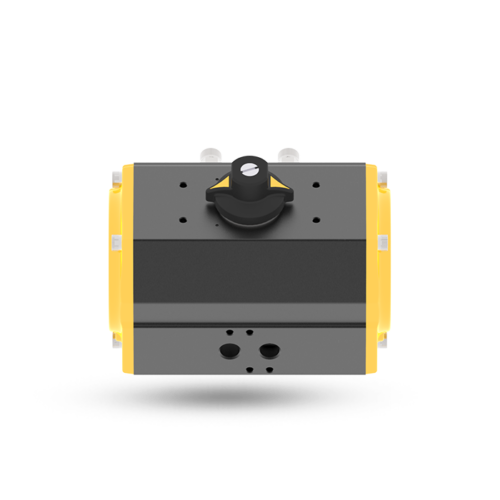

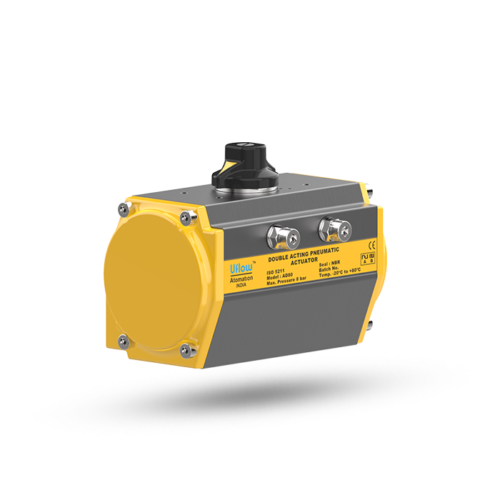

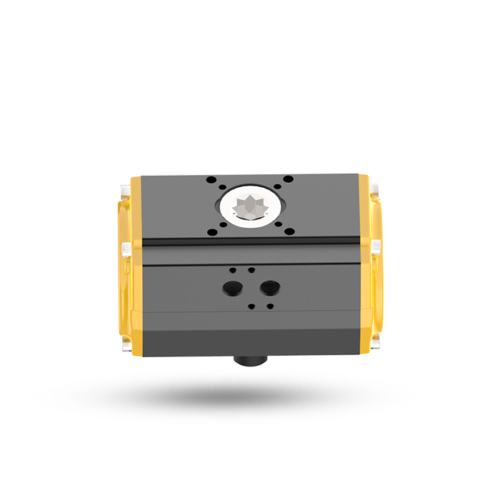

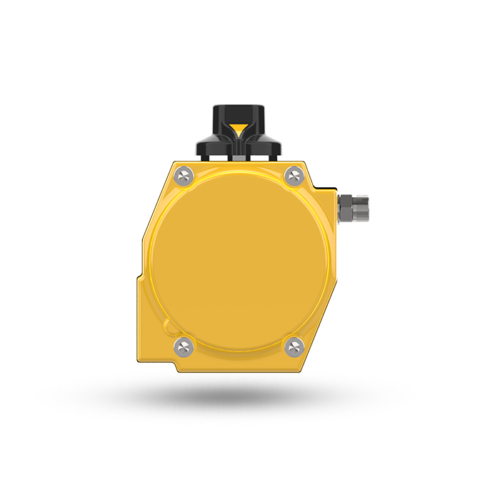

Uflow AD100 Pneumatic Rotary Actuator Double Acting Rack & Pinion Type
₹9,050.00₹11,313.00 Price Excluding GST - ₹7,669.49 (-20%)
Features:
- Body : Aluminium Extruded hard Anodized
- Rack : SS304 (CF8)
- Pinion : EN8
- Seal : Nitrile
- Turn : 90° (Quarter)
- Pressure Range : 2 – 8 Bar
- Other model : AD32, AD50, AD63, AD80, AD125
Description
| Body | Aluminum extruded, hard-anodized corrosion resistance |
|---|---|
| Design | Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design |
| Performance | Low air consumption with max. Torque |
| Operation | Finer teeth module for Smooth traveling & jerk-free sliding |

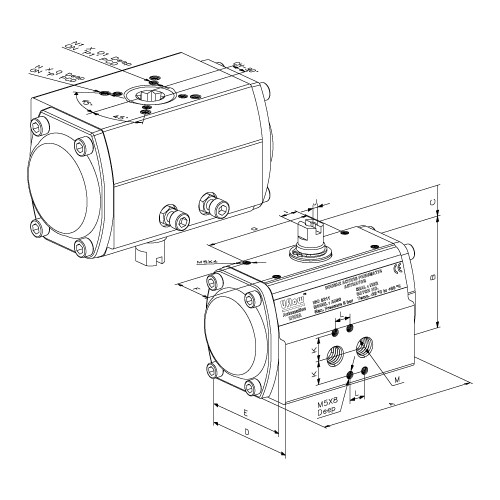

Dimensions
| Model | A | B | C | D | E | F | G | I | J | K | L | M | N | O | P | N1 | O1 | P1 | CH 90 | ISO FLANGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD100
|
217
|
129
|
20
|
126
|
126
|
30
|
80
|
26
|
4
|
16
|
12
|
1/4"
|
M10
|
15
|
102
|
M8
|
14
|
70
|
22
|
F07
|
Technical Data
Torque Chart
| Model No. | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar | 7 Bar | 8 Bar |
|---|---|---|---|---|---|---|---|
| AD100 | 73 | 110 | 146 | 183 | 220 | 256 | 293 |
TORQUE Nm(10Nm = 1 Kgm)
