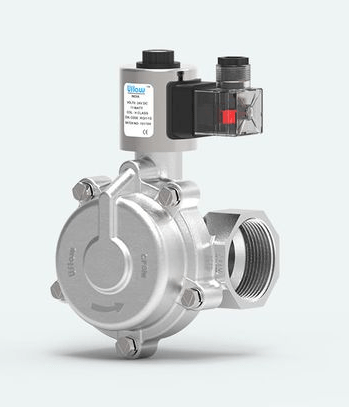

Uflow 2 Inch 2/2 Way Steam Solenoid Valve – Pilot Operated Piston Type Solenoid Valve for Steam SS304 with IP68 Weather Proof LED Coil – Screwed Ends
₹9,185.00₹11,481.00 (-20%)
Features:
- Size : 2″BSP
- Coil Type : IP-68 Weather Proof Round Metallic Coil with LED DIN Connector
- Valve Type : 2/2 way Normally Closed Steam Solenoid Valve
- Body Material : SS304 (ASTM A351 Grade CF8)
- Pressure Range : 1.5 to 12 kg/cm2 (bar)
- Temperature (Media) : -10° C to 180° C
- Seal : PTFE + Sp. VITON
- Media : Suitable for Steam & Hot Fluids, Air, Water, Gas, Chemical
- Other Specification / Data : Check the tabs given below for details
Description
PORT | Refer technical data sheet (Available in BSP threading) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
END CONNECTION | Screwed | ||||||||||
BODY MATERIAL | SS ASTM A351 Grade CF8 | ||||||||||
SEAL & O RING |
|
||||||||||
MEDIA TEMP. | |||||||||||
CIRCUMSTANCE TEMP. | -10° C to 70° C | ||||||||||
MEDIA | Steam, Hot Water, Hot Fluid, Hot Oil | ||||||||||
MAIN FEATURES | Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment | ||||||||||
OPERATING VOLTAGE |
|
||||||||||
POWER CONSUMPTION | |||||||||||
COIL FEATURES | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||||||||
COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||||||||
OPTIONAL FEATURE | 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces. | ||||||||||
OTHER SPECIFICATION DATA | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
Dimensions
Model No. | Port Size | A | B | C | D | E | E1 |
---|---|---|---|---|---|---|---|
HCP89
|
2"
|
132
|
191
|
125
|
114
|
44
|
57
|
Technical Data
Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphram Material | Flow Factor Kv m³/hr |
---|---|---|---|---|---|---|---|
HCP89 | CF8 (SS304) | 2″ | 48 | 1.5 | 12 | PTFE | 28 |
* Note – Body Material : CF8M (SS316) on request
