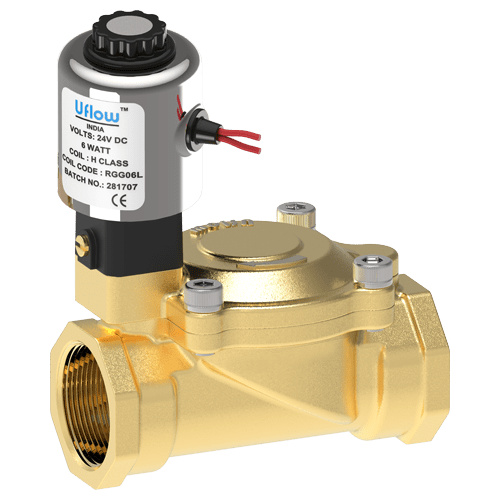

Uflow 1 Inch 2/2 Way Normally Close Brass Body Diaphragm Solenoid Valve with Metallic Round Coil
₹3,020.00₹3,775.00 (-20%)
Features:
- Size : 1″BSP
- Coil Type : Metallic Round Coil with Lead Wire
- Valve Type : 2/2 way Pilot Operated with Manual Override
- Body Material : Forged Brass
- Pressure Range : 0.3 to 10 kg/cm2 (bar)
- Temperature (Media) : -30° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Gas, Oil
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||||||
|---|---|---|---|---|---|---|---|
| End Connection | Screwed Ends | ||||||
| Body Material | Forged Brass | ||||||
| Diapharagm |
|
||||||
| Media Temp | |||||||
| Circumstance Temp | -10° C to 70° C | ||||||
| Media | Steam, Hot Water, Hot Fluid, Hot Oil | ||||||
| Main Features | Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment. | ||||||
| Operating Voltage |
|
||||||
| Power Consumption | |||||||
| Coil Features | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||||
| Coil Housing | Epoxy Moulded Coil with LED, Metallic Round Coil with Lead Wire | ||||||
| Optional Feature | 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces. | ||||||
| Other Specification Data | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
Dimensions
| Model No. | Port Size | Diagram No | A | B | C | D | E | E1 |
|---|---|---|---|---|---|---|---|---|
|
PBN460M
|
1”
|
15.1
|
92
|
107
|
87
|
63
|
28
|
33
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphrm Material | Flow Factor Kv m³/hr |
|---|---|---|---|---|---|---|---|
| PBN460 | Forged Brass | 1″ | 25 | 0.30 | 10 | NBR | 9.00 |
* Note – Seal : EPDM / VITON on request
