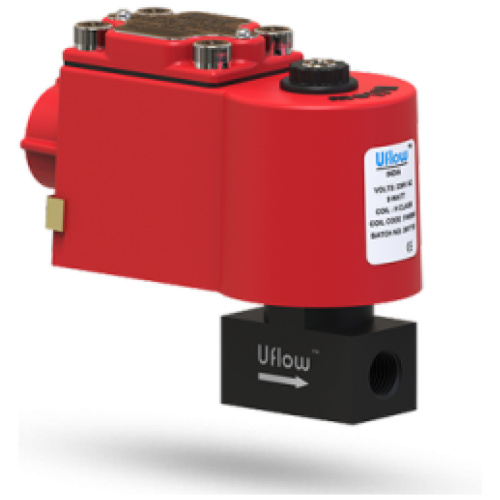

Uflow 1/4 Inch 2/2 Way Direct Acting Solenoid Valve Aluminium Body (0 – 40 Bar) with IP67 Flame Proof Coil – Normally Close
₹2,905.00 – ₹3,050.00 (-20%)
Features:
- Size : 1/4″BSP
- Coil Type : IP-67 Flame Proof Coil
- Valve Type : 2/2 way Normally Closed Screwed End
- Body Material : Aluminium
- Pressure Range : 0 to 40 kg/cm2 (bar)
- Temperature (Media) : -30° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Chemical, Gas, Oil
- Other Specification / Data : Check the tabs given below for details
Description
Port | Refer technical data sheet (Available in BSP threading) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
End Connection | Screwed | ||||||||||
Body Material | Aluminium | ||||||||||
Diaphragm |
|
||||||||||
Media Temp. | |||||||||||
Circumstance Temp. | -10° C to 70° C | ||||||||||
Media | Air, Water, Gas, Chemical, Oil | ||||||||||
Main Features | Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment | ||||||||||
Operating Voltage |
|
||||||||||
POWER CONSUMPTION | |||||||||||
COIL FEATURES | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||||||||
COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||||||||
OPTIONAL FEATURE | 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces. | ||||||||||
OTHER SPECIFICATION DATA | Available on Request |
NOTE1: Seal – NBR as standard. Rest – Optional
NOTE2: Use of filter in the inlet port is recommended.
Technical Data
Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
---|---|---|---|---|---|---|---|
DAN1J | Aluminium | 1/4″ | 1.8 | 0 | 40 | NBR | 0.10 |
* Note – Seal : EPDM / Viton / PTFE / Silicon on request
Dimensions
Model No. | Port Size | A | B | C | E | E1 |
---|---|---|---|---|---|---|
DAN1J
|
1/4"
|
44.50
|
81
|
71
|
44
|
57
|
