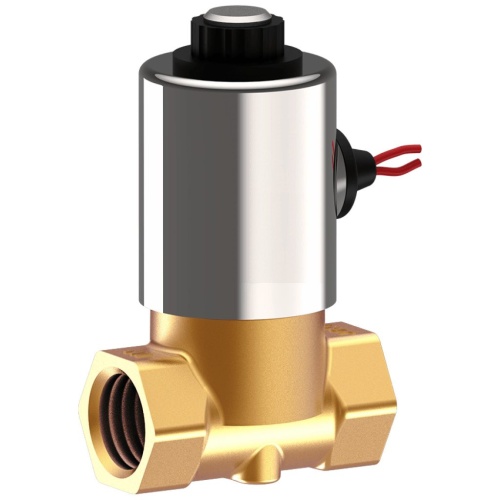

Uflow 1/2 Inch 2/2 Way Semi-Lift Diaphragm Operated Solenoid Valve Brass Body (0 – 10 Bar) with Power Saver Coil – Screwed Ends

2,370.002,963.00 (-20%)

In stock

Features:

  • Size : 1/2″BSP
  • Coil Type : Power Saver Coil
  • Valve Type : 2/2 way Brass Body Normally Close
  • Body Material : Forged Brass Body
  • Pressure Range : 0 to 10 kg/cm2 (bar)
  • Temperature (Media) : -30° C to 90° C
  • Seal : Nitrile (NBR)
  • Media : Suitable for Air, Water, Chemical, Gas
  • Other Specification / Data : Check the tabs given below for details

W3Schools

2,370.002,963.00 (-20%)

Clear

Description

Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed
Body Material Forged Brass
Diaphragm
Nitrile (NBR) EPDM Viton (FKM) PTFE
-30° C to 90° C -10° C to 140° C -10° C to 180° C -10° C to 180° C
Media Temp.
Circumstance Temp. -10° C to 70° C
Media Air, Water, Chemical, Gas
Main Features Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
Operating Voltage
24AC 110AC 230AC 12DC 24DC
7W 8W 8W/15W 10W 11W
POWER CONSUMPTION
COIL FEATURES High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
COIL TYPES Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil
OPTIONAL FEATURE 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
OTHER SPECIFICATION DATA Available on Request

NOTE1: Seal – NBR as standard. Rest – Optional
NOTE2: Use of filter in the inlet port is recommended.

Dimensions

Model No. Port Size Diagram No A B C D E E1
MBN24
1/2"
12.2
54
91
78
-
38
48.50
