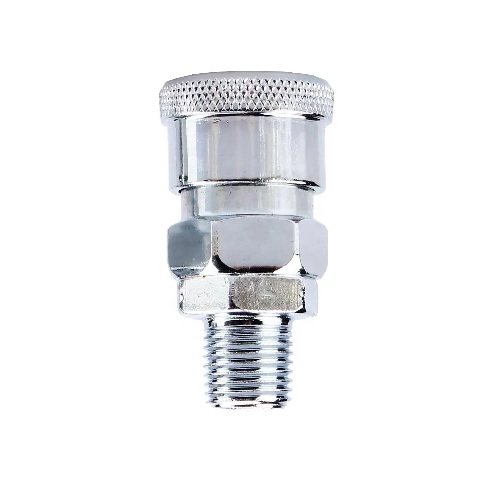

Quick Release Coupling Double Check Valve – Double Shut Off Valve Hydraulic QRC – MS Body Quick Coupler – Size 3/4″
₹638.00₹850.00 Price Excluding GST - ₹540.68 (-25%)
Features
- Size: 3/4″ BSP
- Locking System: Ball Bearing with manual sleeve
- Valve: Poppet Type Shut-Off system (Double Check Valve)
- Surface Treatment: Chrome plated, provides excellent resistance to corrosion in most conditions
- Engagement: Smooth connection and release of plug and socket makes it convenient to use
- Working: Flow expedites automatically when coupled
- Body & Ball: Mild Steel (MS) Chromed
- Seal Material: Nitrile (Double Seal for strong gripping in pressure)
Description
| Port | Refer technical data sheet (Available in BSP threading) |
|---|---|
| End Connection | Screwed (Female Threaded) |
| Body Material | Mild Steel surface treated chromium plated |
| Spring | Spring steel as per IS Standard |
| Balls | MS Chromed |
| Seal | NBR (Nitrile Rubber) |
| Media Temperature | – 25 deg C to + 100 deg C |
| Construction | Quick Coupling with double check valve (one at coupler end & other at adaptor end) |
| Advantages | Fast, Leak proof instant connections, without tools, without threading or twisting, without strains, without sweat. Hence time saving |
Technical Data
| Model No. | Nominal Size (mm) | Nominal Size (Inch) | Max. Working Pressure (PSI) |
|---|---|---|---|
| MSDC-34 | 20 | 3/4″ | 2200 |
QRC – MS/SS DC-34
| Model No | Thread Size | HA | LA | RS | LS | LC |
|---|---|---|---|---|---|---|
|
MSDC-34 / SSDC-34
|
3/4" BSP
|
32
|
55
|
45
|
77
|
100
|
