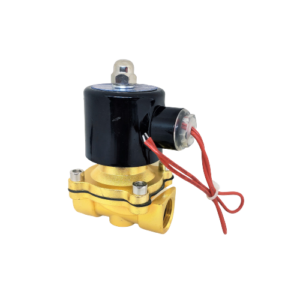

Aeroflex 2 Inch 2/2 Way 24V DC Normally Close Diaphragm Solenoid Valve Brass Finish – 50-2WZ
₹5,373.00₹7,164.00 Price Excluding GST - ₹4,553.39 (-25%)
Features:
- Size : 2″BSP
- Coil Type : Metallic Casing Round Coil with Wire
- Valve Type : 2/2 way Normally Closed Screwed End
- Body Material : Brass finish metal
- Pressure Range : 0 to 10 kg/cm2 (bar)
- Temperature (Media) : -5° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Chemical, Gas
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||
|---|---|---|---|
| End Connection | Screwed | ||
| Body Material | Brass Finish Alloy | ||
| Diaphragm |
|
||
| Media Temp. | |||
| Media | Air, Water, Chemical, Gas | ||
| Operating Voltage | 230AC & 24DC | ||
| Coil Features | Easy coil change or freely movable in between as require | ||
| Other Specification Data | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
Dimensions
| Model No. | G | A | B | C | D | E |
|---|---|---|---|---|---|---|
|
50-2WZ
|
2"
|
150
|
120
|
185
|
155
|
68
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material |
|---|---|---|---|---|---|---|
| 50-2WZ | Brass Finish Alloy | 2″BSP | 50 | 0 | 10 | NBR |
* Note – Working Pressure varies with size and media
